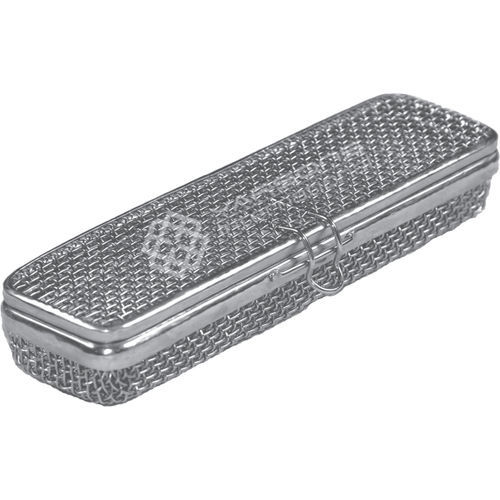

Instrument sterilization tray YSF-5650

for surgical instrumentsperforatedstainless steel

Item Name
Superfine mesh sterilization tray for surgical components

Item Description
Micro-mesh trays designed to hold, wash, control infection, and sterilize small prosthetics, bone screws and micro-instruments. Constructed in stainless steel for repeated use in medical sterilization workflows; available with fixed or detachable lids and optional locking and identification features.

Uses

• Hold, wash and sterilize small prosthetics, bone screws and micro-instruments
• Secure small parts and delicate surgical tools during washing, autoclaving, transport and storage

Features

• Woven micro-mesh aperture options: 2×2×0.7 mm, 1×1×0.4 mm, 0.7×0.7×0.25 mm
• Rounded corners to protect instruments and reduce damage
• Designed to contain instruments with small parts that are hard to manage during reprocessing
• Maximized surface exposure for effective cleaning and sterilization by steam and washing equipment
• Available with fixed or detachable lids and optional locks
• 304 stainless steel construction compatible with steam, machine washing, autoclave, heat and chemical sterilization
• Optional protective strip capping
• Optional RFID identification tags for tray content tracking
• Open mesh design allows full steam contact to all surfaces

Dimensions / Model Options
YSF-5650 | 160X40X20 mm
YSF-5655 | 200X40X40 mm
YSF-5656 | 200X60X40 mm

Technical specifications

• Mesh type: Woven
• Available mesh aperture sizes: 2×2×0.7 mm; 1×1×0.4 mm; 0.7×0.7×0.25 mm
• Example mesh size: 2 × 2 mm
• Mesh wire thickness: 0.71 mm (22 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finish options: mirror, bright, satin, brushed, colored
• Cutting method: Laser cut
• Stackable design: All trays are stackable
• Lids: Fixed or detachable (optional) with locking options
• Identification: RFID tag option for content identification
