Instrument sterilization tray YSF-5 series

for orthopedic instrumentsfor surgical instrumentsoptions

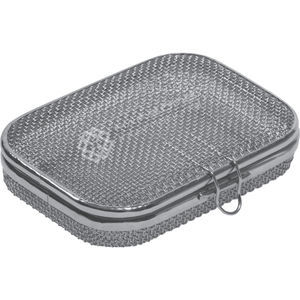

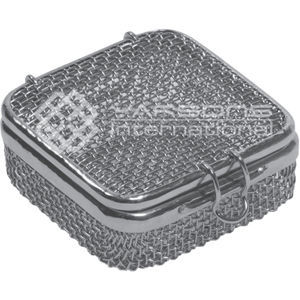

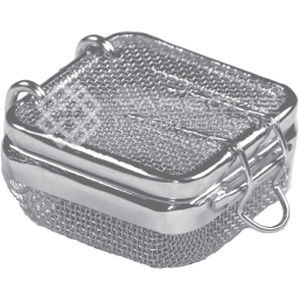

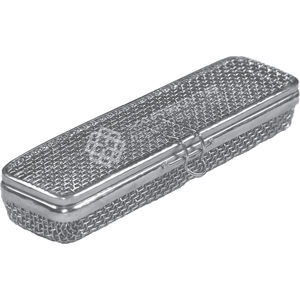

Item Name: Micro-mesh sterilization tray YSF-5500

Overview:
Microfine woven mesh trays designed to hold, wash, control infection and enable sterilization of small prosthetics, bone screws and micro-instruments. Trays accommodate delicate surgical components during cleaning, transport and storage while permitting full exposure to sterilizing agents.

Uses:
Intended for use in hospital sterilization departments, central sterile services (CSSD) and surgical instrument processing. Suitable for containment, washing and autoclave or chemical sterilization of small medical devices and precision instruments.

Features:

• Available woven mesh aperture sizes: 2x2x0.7 mm, 1x1x0.4 mm, 0.7x0.7x0.25 mm
• Round corners for instrument protection
• Holds instruments with small components that are difficult to track during processing
• Maximizes surface exposure to washing and sterilization media
• Optional fixed or detachable lids with locks
• 304 (ASTM) stainless steel construction compatible with steam, machine washing, autoclave, heat and chemical sterilization
• Available with protective strip capping
• Equipped with RFID identification tags for content tracking
• Design allows steam and sterilant contact with all internal surfaces

Sizes (table):
YSF-5500 | 40X40X20
YSF-5600 | 80X40X20
YSF-5906 | 80X40X40

Mesh and Construction Details:

• Mesh type: Woven
• Typical mesh size: 1 x 1 mm
• Mesh wire diameter: 0.4 mm (27 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finishes: mirror, luster, satin, brushed and colored options
• Cutting method: laser cut
• All trays are stackable

Technical specifications:

• Model designation: YSF-5500
• Available aperture sizes: 2x2x0.7 mm, 1x1x0.4 mm, 0.7x0.7x0.25 mm
• Typical mesh size: 1 x 1 mm
• Mesh wire thickness: 0.4 mm (27 SWG)
• Material grade: 304 (ASTM) stainless steel
• Surface finish options: mirror, luster, satin, brushed, colored
• Manufacturing cutting: laser cut
• Lid options: fixed or detachable lids and locks (optional)
• Extras: protective strip capping, RFID identification tags
