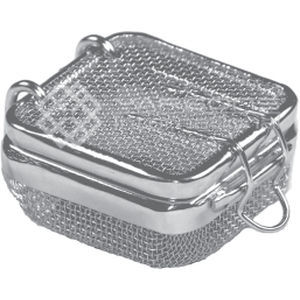

Instrument sterilization tray YSF-5 series

for meshersstainless steelwire

Item Name
Super Fine Mesh Trays (YSF series) — micro-mesh trays for washing, sterilization, transport and storage of small prosthetics and micro-instruments.

Item Description
Designed for handling, washing, infection control and sterilization of small prosthetics, bone screws and micro-instruments. The superfine woven mesh retains small parts while allowing unrestricted steam and liquid flow to ensure thorough cleaning and sterilization in autoclave and machine-washing processes.

Features

• Available woven mesh aperture sizes: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Round corners to protect instruments and reduce stress points
• Designed to retain instruments with small components during washing, sterilization, transport and storage
• Maximized open surface area for effective exposure to cleaning and sterilization media
• Basket/trays available with fixed or detachable lids and optional locks
• 304 (ASTM) stainless steel construction compatible with steam, machine washing, autoclave, heat and chemical sterilization
• Available with protective strip capping
• Equipped with RFID identification tags for content tracking
• Unrestricted steam contact to all internal surfaces

Sizes
YSF-5500 | 40X40X20 mm
YSF-5600 | 80X40X20 mm
YSF-5906 | 80X40X40 mm

Mesh and construction

• Mesh type: Woven
• Typical mesh size: 1 x 1 mm
• Mesh wire diameter: 0.4 mm (27 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finish: mirror, luster, satin, brushed or colored
• Cutting: Laser cut
• Stackable: All trays are stackable

Technical specifications

• Model: YSF-5500
• Available aperture sizes: 2x2x0.7 mm; 1x1x0.4 mm; 0.7x0.7x0.25 mm
• Example dimensions: 40X40X20; 80X40X20; 80X40X40 (mm)
• Material grade: 304 (ASTM) stainless steel
• Mesh wire diameter: 0.4 mm (27 SWG)
• Mesh type: Woven
• Lid options: Fixed or detachable; locks optional
• Optional features: Protection strip capping; RFID tag equipped
• Intended use: Washing, sterilization, transport and storage of small prosthetics, bone screws and micro-instruments
