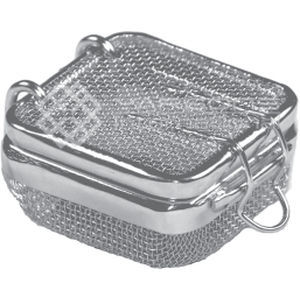

Instrument sterilization tray YSF-5500

for surgical instrumentsfor traysautoclavable

Item Name
Super Fine Mesh Trays

Item Description
Superfine micro-mesh trays designed to contain, wash, control infection and sterilize small prosthetics, bone screws and micro-instruments. The woven micro-mesh provides secure containment while allowing full penetration of cleaning agents and steam during machine washing and autoclaving. Trays are intended for use in surgical instrument processing, transport and storage workflows.

Features

• Available woven mesh aperture sizes: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Rounded corners to protect delicate parts and reduce snagging
• Designed to retain small components that are difficult to track during washing, sterilization, transport and storage
• Maximized open surface area for optimal exposure to washing and sterilization media
• Optional fixed or detachable lids and locking mechanisms
• Stainless steel construction compatible with steam, machine washing, autoclaves, heat and chemical sterilization processes
• Optional protective strip capping for mesh edges
• Equipped with optional RFID identification tags for content tracking
• Unrestricted steam and chemical contact to all internal surfaces

Available sizes
YSF-5500 | 40 x 40 x 20 mm
YSF-5600 | 80 x 40 x 20 mm
YSF-5906 | 80 x 40 x 40 mm

Other product details

• Mesh type: Woven
• Typical mesh size: 1 x 1 mm (example)
• Mesh wire: 0.4 mm (27 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finish options: mirror, luster, satin, brushed, colored
• Cutting method: Laser cut
• All trays are stackable

Technical specifications

• Model examples & sizes: YSF-5500 (40 x 40 x 20 mm), YSF-5600 (80 x 40 x 20 mm), YSF-5906 (80 x 40 x 40 mm)
• Mesh aperture options: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Mesh wire thickness: 0.4 mm (27 SWG)
• Mesh type: Woven
• Material: 304 ASTM stainless steel
• Surface finishes available: mirror, luster, satin, brushed, colored
• Cutting method: Laser cut
• Lids & locks: Fixed or detachable lids and locks available (optional)
• Optional accessories: Protective strip capping; RFID identification tags
• Compatibility: Withstands steam, machine washing, autoclaves, heat and chemical sterilization
• Design notes: Rounded corners; stackable
