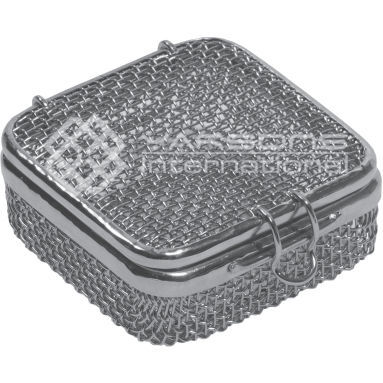

Instrument sterilization tray YSF-5700

for surgical instrumentsperforatedstainless steel

Product name
Super Fine Mesh Trays — YSF-5700 (70×70×30 mm)

Description
Trays constructed with superfine woven mesh to hold, wash, control infection and sterilize small prosthetics, bone screws and micro-instruments. Designed for use in surgical instrument processing, sterilization cycles and secure storage/transport of delicate components.

Key features

• Woven mesh aperture options: 2×2×0.7 mm; 1×1×0.4 mm; 0.7×0.7×0.25 mm
• Round corners to protect instruments
• Optimized for maximum surface exposure during washing and sterilization
• Optional fixed or detachable lids and locking mechanisms
• Optional protective edge strip
• Optional RFID identification tags for content tracking
• Fully compatible with steam, machine washing, autoclave, heat and chemical sterilization
• All trays stackable for efficient storage

Available sizes / references
YSF-5700 | 70×70×30 mm
YSF-5800 | 80×80×40 mm
YSF-5900 | 90×90×50 mm
YSF-8012 | Ø 80×120 mm
YSF-8080 | Ø 80×80 mm

Technical specifications

• Mesh type: Woven
• Example mesh size: 2×2 mm (aperture option listed)
• Example mesh wire: 0.71 mm (22 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finish options: mirror, luster, satin, brushed, colored
• Cutting method: laser cut
• Stackable: all trays are stackable
