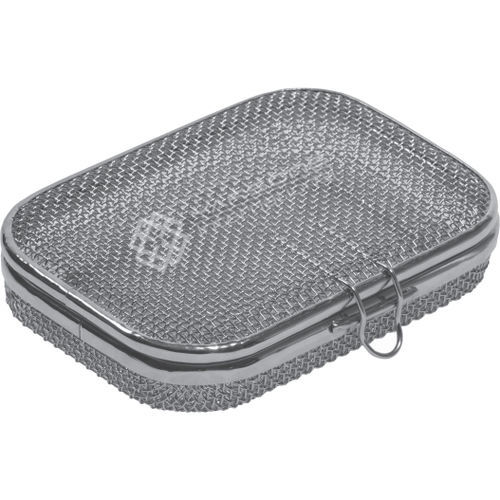

Instrument sterilization tray YSF-6 series

for surgical instrumentsperforatedstainless steel

Item Name: Super Fine Mesh Trays

Item Description: Superfine micro-mesh trays designed to hold, wash, provide infection control, and enable sterilization of small prosthetics, bone screws, micro-instruments and other fine surgical tools and prosthetics.

Uses:

• Hold small prosthetics and delicate surgical parts
• Washing and machine cleaning of micro-instruments
• Infection control and sterilization (steam, autoclave, heat, chemical processes)
• Transport and storage of instruments with small parts

Features:

• Available woven mesh aperture sizes: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Round corners
• Designed to hold many different instruments with smaller parts that are difficult to keep track of during washing, sterilization, transport & storage
• Provides maximum surface area exposure to washing equipment
• Baskets/trays available with fixed or detachable lids and optional locks
• Stainless steel construction suitable for steam, machine washing, autoclaves, heat and chemical sterilization processes
• Available with special protection strip capping
• Equipped with optional identification RFID tags for content identification
• Steam has unlimited contact to all surfaces

Sizes / Models:
YSF-6010 | 150X110X20
YSF-6020 | 180X130X120
YSF-6035 | 230X150X50

Additional product notes:

• Mesh Type: Woven
• Mesh wire thickness example: 0.71 mm (22 SWG) mentioned
• Surface finish options: Mirror, luster, satin, brushed and colored
• Cutting method: Laser cut
• All trays are stackable

Caractéristiques / Spécifications techniques:

• Model / Denomination commerciale: YSF-6010
• Mesh aperture sizes available: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Mesh type: Woven
• Mesh size (example): 2 x 2 mm
• Mesh wire: 0.71 mm (22 SWG) (example value on product page)
• Material: 304 (ASTM) stainless steel
• Surface finish options: Mirror, luster, satin, brushed and colored
• Cutting: Laser cut
• Stackable: Yes, all trays are stackable
• Options: Fixed/detachable lids, optional locks, protection strip capping, optional RFID tags
