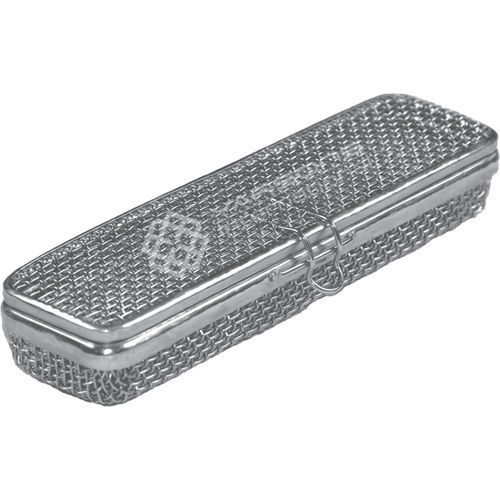

Surgical instrument sterilization cassette YSF-5650

for instrumentsfor traysautoclavable

Item Name
Fine mesh surgical trays (superfine woven micro-mesh)

Item Description
Designed to hold, wash, provide infection control and permit sterilization of small prosthetics, bone screws and micro-instruments. These micro baskets protect delicate surgical tools and prosthetic components during washing, sterilization, transport and storage.

Available Sizes
YSF-5650 | 160 x 40 x 20 mm
YSF-5655 | 200 x 40 x 40 mm
YSF-5656 | 200 x 60 x 40 mm

Features

• Woven mesh aperture options: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Rounded corners for safer handling
• Designed to secure instruments with small components during washing, sterilization, transport and storage
• Maximized surface exposure to washer-disinfectors and steam for effective cleaning
• Trays available with fixed or detachable lids and optional locks
• 304 stainless steel construction resists steam, machine washing, autoclave, heat and chemical sterilization processes
• Optional protective strip capping for edge protection
• Equipped with optional RFID identification tags for content tracking
• Steam and sterilant have full access to all tray surfaces

Additional product details
Mesh type: Woven
Example mesh size (aperture): 2 x 2 mm
Mesh wire diameter: 0.71 mm (22 SWG)
Material: 304 (ASTM) stainless steel
Surface finish options: mirror, luster, satin, brushed, colored
Cutting: Laser cut
Stackable: All trays are stackable

Technical specifications

• Model / Reference examples: YSF-5650, YSF-5655, YSF-5656
• Common dimensions: 160 x 40 x 20 mm; 200 x 40 x 40 mm; 200 x 60 x 40 mm
• Mesh aperture options: 2 x 2 x 0.7 mm; 1 x 1 x 0.4 mm; 0.7 x 0.7 x 0.25 mm
• Mesh type: Woven
• Wire diameter: ~0.71 mm (22 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finishes available: mirror, luster, satin, brushed, colored
• Manufacturing: Laser cut components
• Options: fixed or detachable lids, optional locks, protective strip capping, RFID identification tags
• Compatibility: Suitable for steam, autoclave, washer-disinfector and chemical sterilization processes
