Surgical instrument sterilization tray YSF-60 series

for dental instrumentsfor instrumentsfor orthopedic instruments

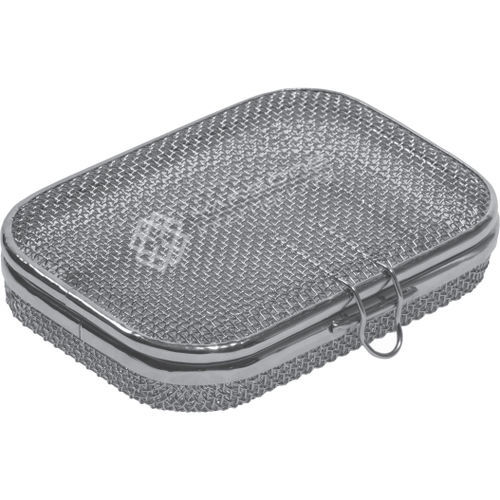

Product name: Superfine micro-mesh surgical tray YSF-6010.

Description:
Superfine micro-mesh trays are designed to hold, wash, control infection and sterilize small prosthetics, bone screws and micro-instruments. The fine woven mesh secures small components during washing, sterilization, transport and storage while allowing unrestricted steam and cleaning agent penetration.

Applications:
Intended for use in surgical instrument processing, sterilization departments, orthopedics and dental prosthetics production where small, delicate items require reliable containment and exposure to sterilization cycles.

Key features:
Round corners; multiple woven mesh aperture options for different instrument sizes; available with fixed or detachable lids and optional locks; optional protection strip capping; RFID identification tags for content tracking; laser-cut construction; stackable design; compatible with steam autoclave, machine washing and chemical sterilization.

Sizes (table):
YSF-6010 | 150×110×20 mm
YSF-6020 | 180×130×120 mm
YSF-6035 | 230×150×50 mm

Technical specifications:

• Model: YSF-6010
• Applications: Holding, washing, sterilization and infection control for small prosthetics, bone screws and micro-instruments
• Woven mesh aperture options: 2 × 2 × 0.7 mm; 1 × 1 × 0.4 mm; 0.7 × 0.7 × 0.25 mm
• Mesh wire diameter: 0.71 mm (22 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finishes available: mirror, luster, satin, brushed, colored
• Cutting: Laser cut
• Construction: Stainless steel suitable for steam autoclave, machine washing and chemical sterilization
• Options: Fixed/detachable lids and locks (optional); protection strip capping; RFID identification tags
• Stackability: Stackable design for storage and transport
