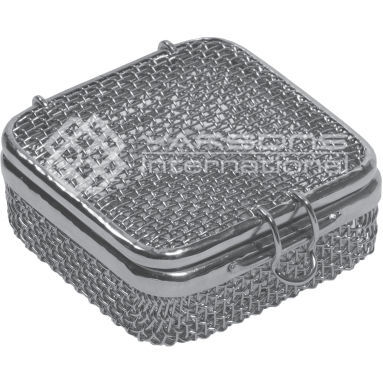

Dental instrument sterilization tray YSF-5700

for orthopedic instrumentsfor ENT instrumentsfor surgical instruments

Product overview:
Surgical micro‑mesh trays designed to hold, wash and enable infection control and sterilization of small prosthetics, bone screws and micro‑instruments. Constructed for repeated autoclave and machine washing cycles while preserving small parts during handling and transport.

Key features:

• Woven micro‑mesh aperture options: 2x2x0.7 mm, 1x1x0.4 mm, 0.7x0.7x0.25 mm
• Rounded corners to protect delicate instruments
• Optimized geometry to retain small components during washing, transport and storage
• Maximized exposed surface for efficient cleaning and sterilization
• Trays available with fixed or detachable lids and lock options
• 304 (ASTM) stainless steel construction compatible with steam, machine washing, autoclave, heat and chemical sterilization
• Optional protective edge strip capping
• Equipped with RFID identification tags for content tracking
• Unrestricted steam contact to all internal surfaces

Available sizes:
YSF-5700 | 70x70x30 mm
YSF-5800 | 80x80x40 mm
YSF-5900 | 90x90x50 mm
YSF-8012 | Ø 80x120 mm
YSF-8080 | Ø 80x80 mm

Technical specifications:

• Mesh type: Woven
• Typical mesh size: 2 x 2 mm (others available)
• Mesh wire diameter: 0.71 mm (22 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finish: mirror, luster, satin, brushed and colored options
• Cutting method: Laser cut
• Stackable design for efficient storage

Applications:

• Handling and sterilization of micro‑instruments, implants and prosthetic components
• Use in orthopedics, dental surgery, ENT, microsurgery and implantology

Sterilization & traceability:
Compatible with standard hospital sterilization processes (steam autoclave, washer‑disinfector, chemical sterilants). RFID tagging facilitates inventory control and traceability throughout the sterilization cycle.
