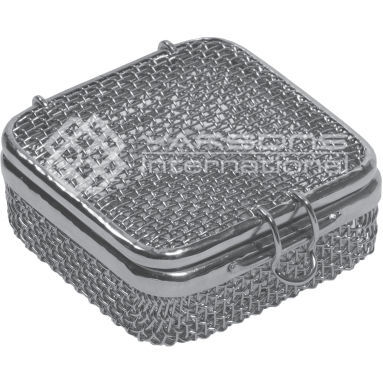

Surgical instrument sterilization tray YSF-5700

for instrumentsautoclavablewire

Product name
Super Fine Mesh Trays YSF-5700

Item description
Superfine woven micro-mesh trays designed for handling, washing, infection control and sterilization of small prosthetics, bone screws and micro-instruments. Suitable for central sterilization and surgical instrument management, the trays secure delicate components during cleaning, autoclaving, transport and storage while allowing full steam and detergent access.

Available sizes
Model | Size
YSF-5700 | 70×70×30 mm
YSF-5800 | 80×80×40 mm
YSF-5900 | 90×90×50 mm
YSF-8012 | Ø 80×120 mm
YSF-8080 | Ø 80×80 mm

Features

• Woven mesh aperture sizes: 2×2×0.7 mm, 1×1×0.4 mm, 0.7×0.7×0.25 mm
• Rounded corners
• Designed to retain instruments with small components during cleaning, sterilization, transport and storage
• Maximizes exposed surface area for optimal contact with washing and sterilization media
• Available with fixed or detachable lids and locking options
• 304 stainless steel construction resists steam, machine washing, autoclaving, heat and chemical sterilization
• Optional protection strip capping
• Equipped with unique RFID identification tags for inventory and content tracking
• Unobstructed steam penetration to all surfaces

Technical specifications

• Mesh type: Woven
• Mesh size (examples): 2 × 2 mm (other aperture sizes as listed above)
• Mesh wire: 0.71 mm (22 SWG)
• Material: 304 (ASTM) stainless steel
• Surface finish: Mirror, luster, satin, brushed and colored
• Cutting: Laser cut
• Stackable: All trays are stackable
• Accessories/options: Fixed/detachable lids and locks, protection strip capping, RFID identification tags
