Circulus arteriosus Willisii vascular model QS001D-01

middle cerebral arteryfemoral arteryintracranial artery

Overview

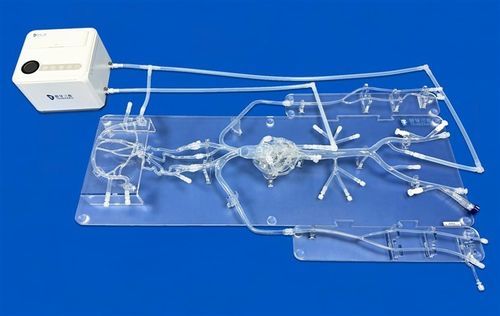

This neurovascular training model QS001D-01 covers the anatomical region from the femoral artery to intracranial arteries up to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery. The intracranial module includes a complete Circle of Willis and five intracranial aneurysm lesions of varying sizes and locations. The cardiothoracic module reproduces anatomically accurate left and right coronary arteries. Modules connect via transparent, customized connectors to allow independent assembly, disassembly and replacement. Vascular geometry and lesion types are customizable to project requirements.

Basic Information

• Model: QS001D-01
• Material: Silicone
• Customization: free design support and technical solutions
• Payment: T/T
• Lead time: 7-15 days
• Port: Ningbo, China
• Shipping methods: FedEx, DHL, EMS, UPS, TNT

Product Applications

• Simulation of intracranial aneurysm embolization and cerebral angiography workflows.
• PCI training, coronary angiography simulation and related coronary interventional procedures.
• Development, bench testing and validation of neurointerventional and coronary devices (catheters, guidewires, microcatheters, microguidewires).
• Operator training, procedural rehearsal and product demonstrations.
• Quantitative haemodynamic analysis using CTA, DSA, MRA, OCT, PIV and Doppler ultrasound.

Customization Services

• Intracranial module: additional lesions such as aneurysms, arteriovenous fistulas (AVFs) and embolic deposits; increased vessel tortuosity on carotid sections.
• Coronary module: customizable bifurcations, stenoses, CTOs and calcified lesions; location and severity adjustable per requirement.
• Aortic arch: options for Type I, Type II, Type III or other specified arch anatomies.
• Abdominal vasculature: expanded complexity and lesion patterns on request.
• Manufacturing from customer-provided CAD, STL, IGS, STEP and other 3D formats.

Technical specifications

• Anatomical extent: femoral artery → intracranial arteries up to A2 (anterior cerebral) and M2 (middle cerebral).
• Intracranial features: complete Circle of Willis; five intracranial aneurysms of varied size and location.
• Cardiothoracic features: anatomically accurate left and right coronary arteries; optional bifurcations, stenosis, CTO and calcified lesions.
• Modularity: intracranial, cardiothoracic and abdominal modules connect via transparent connectors for independent assembly, disassembly and replacement.
• Material: silicone.
• Compatible uses: device development and testing, procedural simulation, training and demonstrations.
• Compatible imaging/analysis: CTA, DSA, MRA, OCT, PIV, Doppler ultrasound.
• Model reference: QS001D-01.
• Lead time: 7-15 days.
• Shipping methods: FedEx, DHL, EMS, UPS, TNT.
