External carotid artery vascular model FA005Dintracranial arteryintracranialmiddle cerebral artery
Add to favorites
Compare this product
Characteristics
- Area of the body
- external carotid artery, intracranial artery, intracranial, middle cerebral artery, vertebral artery, thoracic aorta, popliteal artery, whole body, abdominal aorta, arterial system, anterior cerebral artery, femoral artery, internal carotid artery, common carotid artery, circle of Willis
- Application
- neurosurgery
- Procedure
- for healthcare training, for brain embolization, for embolization, for demonstration, for neurovascular intervention
- Simulated pathology / condition
- with cerebral aneurysm, with intracranial aneurysm, with aneurysm
- Material
- silicone
- Accessories
- with blood vessels
- Color
- white
Description
Overview

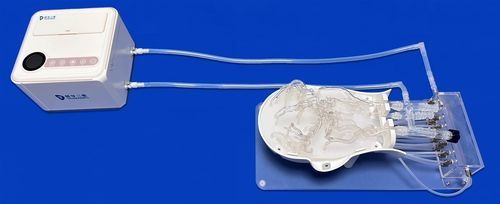

This full-body arterial model reproduces a 3D anatomical arterial network including carotid and vertebral arteries, a complete Circle of Willis, external carotid arteries, middle cerebral arteries to the M2 segment and anterior cerebral arteries to the A3 segment. The model includes common vascular pathologies: an anterior communicating artery aneurysm, right internal carotid artery tortuosity and a right middle cerebral artery aneurysm. Distal vessel ends converge under the support plate via connectors. The model is mounted on a white acrylic base and features open-sided access on both lateral faces for unobstructed visualization of device movement within intracranial vasculature. Sections (intracranial, aortic, abdominal and lower-extremity arterial) can be connected, disconnected or interchanged using customized connectors; each section is replaceable and can be tailored to application needs.
Product information
Product Applications
Customization Services
Technical specifications
This full-body arterial model reproduces a 3D anatomical arterial network including carotid and vertebral arteries, a complete Circle of Willis, external carotid arteries, middle cerebral arteries to the M2 segment and anterior cerebral arteries to the A3 segment. The model includes common vascular pathologies: an anterior communicating artery aneurysm, right internal carotid artery tortuosity and a right middle cerebral artery aneurysm. Distal vessel ends converge under the support plate via connectors. The model is mounted on a white acrylic base and features open-sided access on both lateral faces for unobstructed visualization of device movement within intracranial vasculature. Sections (intracranial, aortic, abdominal and lower-extremity arterial) can be connected, disconnected or interchanged using customized connectors; each section is replaceable and can be tailored to application needs.
Product information
- Model: FA005D
- Material: Silicone
- Mounting: white acrylic base
- Custom service: free design service and technical solutions
- Payment terms: T/T
- Lead time: 7–15 days
- Port: Ningbo, China
- Shipping methods: FedEx, DHL, EMS, UPS, TNT
Product Applications
- Simulation of aneurysm coiling, intracranial stent deployment and mechanical thrombectomy of the middle cerebral artery (MCA).
- Development, testing and validation of neurointerventional devices (guide catheters, microcatheters, microwires, stents, etc.).
- Neurointerventional training, education and product demonstrations.
- Quantitative hemodynamic analysis using CTA, DSA, MRA, OCT, PIV and Doppler ultrasound.
Customization Services
- Number, size and location of intracranial aneurysms can be customized per requirements.
- Additional intracranial lesions (various degrees of stenosis, occlusion and other common vascular pathologies) can be incorporated on request.
- Custom models can be manufactured from customer-provided CAD, STL, STP, STEP and other compatible 3D files.
Technical specifications
- Model identifier: FA005D
- Material: Silicone
- Included anatomical structures: carotid and vertebral arteries, complete Circle of Willis, external carotid arteries, middle cerebral arteries to M2, anterior cerebral arteries to A3
- Included pathologies: anterior communicating artery aneurysm, right internal carotid artery tortuosity, right middle cerebral artery aneurysm
- Design: open-sided for unobstructed intracranial device visualization
- Connectors: distal vessel connectors enabling intracranial, aortic, abdominal and lower-extremity arterial sections to be connected/disconnected/interchanged; sections replaceable/customizable
- Compatible evaluation methods: CTA, DSA, MRA, OCT, PIV, Doppler ultrasound
- Lead time: 7–15 days
- Payment: T/T
- Port: Ningbo, China
- Shipping methods: FedEx, DHL, EMS, UPS, TNT
- Internal product ID: 217907622
