Anterior cerebral artery vascular model SJ001D-020middle cerebral arteryintracranial arteryabdominal aorta
Add to favorites
Compare this product
Characteristics
- Area of the body
- anterior cerebral artery, middle cerebral artery, intracranial artery, abdominal aorta, femoral artery, radial artery, right internal carotid artery
- Procedure
- training, for brain embolization, for neurovascular intervention, for angiography
- Material
- silicone
- Accessories
- with blood vessels
Description
Product description

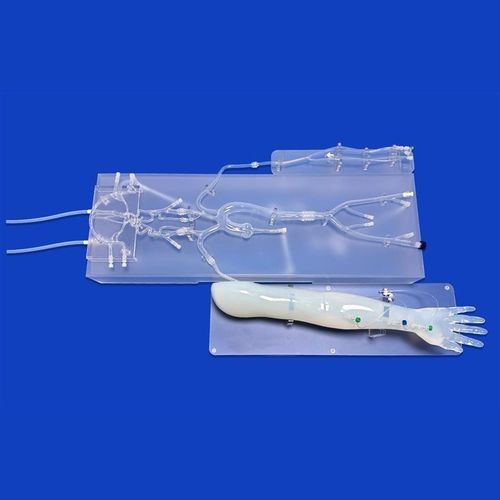

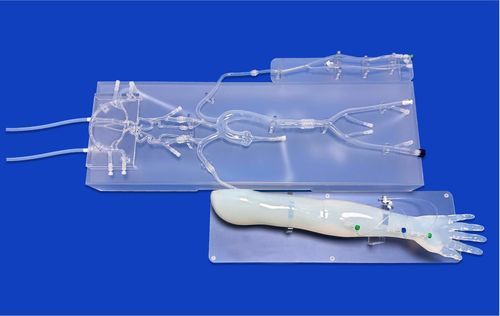

The neurovascular training model covers the arterial pathway from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery. The right internal carotid artery features an S-shaped tortuosity. The model is composed of modular intracranial, aorta and abdominal sections connected with custom connectors for easy assembly, disassembly and replacement. The right radial artery reproduces the anatomical shape of the human arm and includes three intervention/access points. Individual parts can be customized to clinical or training requirements.
Application
Custom service options
Characteristics / Technical specifications
The neurovascular training model covers the arterial pathway from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery. The right internal carotid artery features an S-shaped tortuosity. The model is composed of modular intracranial, aorta and abdominal sections connected with custom connectors for easy assembly, disassembly and replacement. The right radial artery reproduces the anatomical shape of the human arm and includes three intervention/access points. Individual parts can be customized to clinical or training requirements.
Application
- Simulation of intracranial thrombectomy procedures, aneurysm embolization and cerebral angiography.
- Development, testing, verification and demonstration of endovascular devices such as catheters, stents, balloons, guidewires and microcatheters.
- Hands-on training, device marketing demonstrations and clinical education for neurointerventional teams.
Custom service options
- Number, size and location of intracranial aneurysms and embolic lesions can be customized on request.
- Aortic arch can be produced as type I, type II, type III or other specified morphologies.
- Carotid segments can include pathological conditions such as aneurysms and stenoses.
- Additional complex structures can be added to the abdominal section.
- 3D presentation effect available by mounting the model in a clear acrylic display box.
- Custom models can be manufactured from customer-provided CAD, STL, STP, STEP or similar data.
Characteristics / Technical specifications
- Model: SJ001D-020
- Commercial name: Space Aorta Model III
- Brand / Manufacturer: Ningbo Trando 3D Medical Technology Co., Ltd.
- Material: silicone
- Port: Ningbo, China
- Payment terms: T/T
- Lead time: 7-15 days
- ODM services available
- Anatomical coverage: femoral artery to A2 (anterior cerebral artery) and M2 (middle cerebral artery)
- Right carotid artery: S-shaped tortuous configuration
- Modular design: intracranial, aorta and abdominal parts are connectable, disassemblable and replaceable via custom connectors
- Right radial artery: anatomically shaped with three intervention/access points
- Highly customizable: aneurysm number/size/location, embolism location, aortic arch type, carotid pathologies, additional abdominal structures; compatible with CAD/STL/STP/STEP data
Catalogs
No catalogs are available for this product.
See all of Trando 3D Medical Technology‘s catalogsOther Trando 3D Medical Technology products
