Blood vessels vascular model FAC007Dintracranialcirculus arteriosus Willisiithoracic
Add to favorites
Compare this product
Characteristics
- Area of the body
- blood vessels, intracranial, circulus arteriosus Willisii, thoracic, abdomen, coronary arteries, femoral artery, heart
- Application
- for neurology
- Material
- silicone
- Accessories
- with blood vessels
- Other characteristics
- transparent
Description
Key details
Model: FAC007D
Material: Silicone
Custom service: providing free design service & technical solutions
Payment: T/T
Lead time: 7-15 days
Port: Ningbo, China
Shipping Methods: FedEx, DHL, EMS, UPS, TNT
Product Description

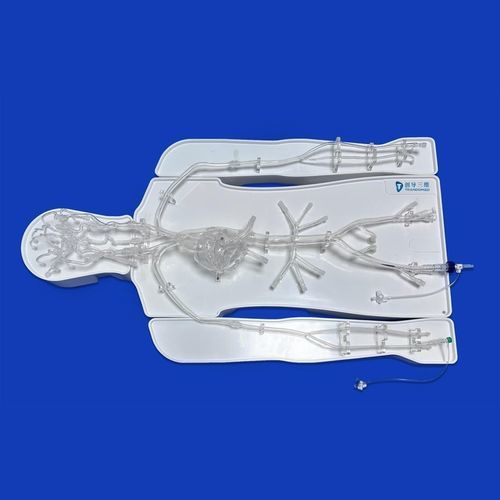

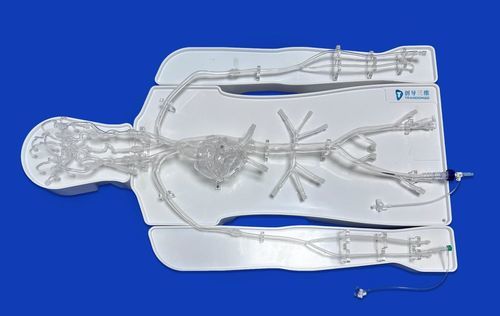

This neurovascular model reproduces vascular anatomy from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery, and includes a complete Circle of Willis. The intracranial module presents normal cranial vascular anatomy while the cardiothoracic module includes anatomically accurate left and right coronary arteries.
The complete model is mounted on a human-shaped acrylic plate to provide realistic spatial orientation. It can be paired with a transparent human-shaped enclosure and LED lighting panel for enhanced visual demonstration.
Modules use transparent connectors allowing independent disassembly, replacement and reconfiguration. Vascular geometry and lesion types for each module can be customized according to project requirements.
Product Applications
Customization Services
Specifications
Model: FAC007D
Material: Silicone
Custom service: providing free design service & technical solutions
Payment: T/T
Lead time: 7-15 days
Port: Ningbo, China
Shipping Methods: FedEx, DHL, EMS, UPS, TNT
Product Description
This neurovascular model reproduces vascular anatomy from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery, and includes a complete Circle of Willis. The intracranial module presents normal cranial vascular anatomy while the cardiothoracic module includes anatomically accurate left and right coronary arteries.
The complete model is mounted on a human-shaped acrylic plate to provide realistic spatial orientation. It can be paired with a transparent human-shaped enclosure and LED lighting panel for enhanced visual demonstration.
Modules use transparent connectors allowing independent disassembly, replacement and reconfiguration. Vascular geometry and lesion types for each module can be customized according to project requirements.
Product Applications
- Simulation of cerebral angiography procedures.
- Simulation of percutaneous coronary intervention (PCI), coronary angiography and related procedures.
- Development, testing and validation of neurointerventional and coronary devices (catheters, guidewires, microcatheters, microguidewires, etc.).
- Training and product demonstrations for neuro and coronary interventions.
- Quantitative flow analysis using CTA, DSA, MRA, OCT and PIV.
Customization Services
- Intracranial vessels: add aneurysms, arteriovenous fistulas (AVFs) and embolic lesions; increase carotid tortuosity.
- Coronary models: add bifurcations, stenosis, chronic total occlusion (CTO) lesions and calcifications; adjust lesion location and severity.
- Aortic arch: customize Type I, Type II, Type III or other specific arch anatomies.
- Abdominal vasculature: create more complex vascular anatomies and related lesions.
- Manufacture from customer-provided CAD/STL/IGS/STEP 3D data formats.
Specifications
- Model number: FAC007D
- Material: Silicone
- Mounted on: human-shaped acrylic plate
- Modular design: detachable intracranial, cardiothoracic and abdominal modules
- Applicable imaging/analysis: CTA, DSA, MRA, OCT, PIV
- Customization options: aneurysm, AVF, embolic lesion, tortuosity, bifurcation, stenosis, CTO, calcification, aortic arch types
- Supports manufacturing from CAD/STL/IGS/STEP data
- Payment: T/T
- Lead time: 7-15 days
- Port of shipment: Ningbo, China
- Shipping methods: FedEx, DHL, EMS, UPS, TNT
- Product ID: 308571000
