Intracranial vascular model SJX006-1

arterycommon carotid arteryvertebral artery

Product overview

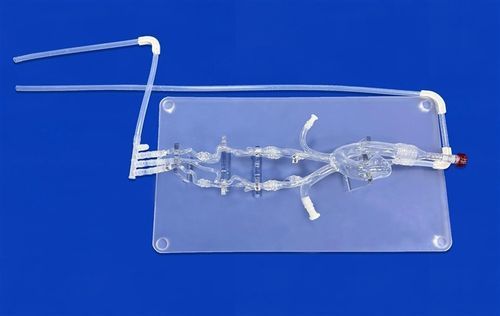

This neuro vessel model extends from the aorta to the intracranial arteries, including the carotid, vertebral and subclavian arteries, the aortic arch and relevant branches. The model includes one stenotic lesion on each side at the intracranial C1 and V1 segments (four stenotic lesions in total). The four lesion pieces are linked by a disassemblable pagoda connector so each lesion segment can be removed and replaced. The model is fixed on transparent acrylic supports and mounted on a frosted acrylic base plate. Material: silicone.

Applications

• Simulation of stent deployment, mechanical thrombectomy and diagnostic cerebral angiography.
• Development, bench testing and validation of neuro-interventional devices: coils, catheters, guidewires, microcatheters and micro-guidewires.
• Training, product demonstration and marketing for clinical and R&D teams.
• Quantitative flow analysis and multimodal imaging tests (CTA, DSA, MRA, OCT, PIV and other imaging/flow measurement methods).

Customization options

• Intracranial region: customizable aneurysms, arteriovenous fistulae, embolic lesions and other pathologies on request.
• Aortic arch: interchangeable options including Type I, Type II, Type III or anomalous arch geometries.
• Carotid arteries: optional increased tortuosity and embolic lesion additions.
• Access options: radial artery and femoral artery access can be added.
• Optional abdominal vascular segment can be integrated.
• Custom models manufactured from provided imaging or CAD data (CT, CAD, STL, STP, STEP, etc.).

Packaging & product identifiers
Model: SJX006-1

Technical specifications

• Model identifier: SJX006-1
• Anatomical extent: aorta to intracranial arteries (includes carotid, vertebral, subclavian arteries and aortic arch)
• Lesions: four stenotic lesions (one per side at intracranial C1 and V1); lesion segments connected by disassemblable pagoda connector
• Mounting: transparent acrylic supports fixed on frosted acrylic base plate
• Material: silicone
• Port: Ningbo, China
• Payment terms: T/T
• Lead time: 7-15 days
• ODM services: available
