Intracranial vascular model FAC011Dfemoral arterycircle of Willisanterior cerebral artery
Add to favorites
Compare this product
Characteristics
- Area of the body
- femoral artery, radial artery, right internal carotid artery, circle of Willis, anterior cerebral artery, middle cerebral artery, intracranial
- Material
- silicone
- Accessories
- with blood vessels
- Other characteristics
- transparent
Description
Product description

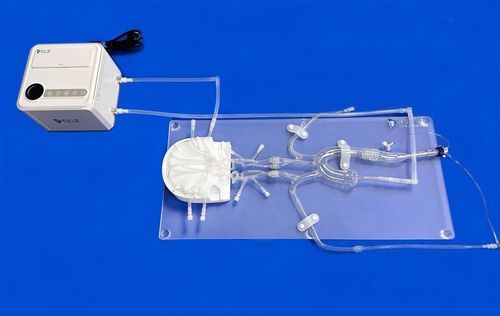

The neuro vessel model covers anatomy from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery. The intracranial section incorporates a complete circle of Willis and four distinct aneurysm lesions. The right carotid artery presents an S-shaped tortuous configuration. The model is mounted on a rigid support fixed to a frosted acrylic plate to improve stability. Transparent, customizable connectors allow the intracranial, aortic and radial sections to be detached and replaced for configuration flexibility.
Application
Customization service options
Technical specifications
The neuro vessel model covers anatomy from the femoral artery to the A2 segment of the anterior cerebral artery and the M2 segment of the middle cerebral artery. The intracranial section incorporates a complete circle of Willis and four distinct aneurysm lesions. The right carotid artery presents an S-shaped tortuous configuration. The model is mounted on a rigid support fixed to a frosted acrylic plate to improve stability. Transparent, customizable connectors allow the intracranial, aortic and radial sections to be detached and replaced for configuration flexibility.
Application
- Simulating aneurysm tamponade and performing cerebral angiography imaging.
- Development, testing and validation of neuro-interventional devices including coils, catheters, guidewires, microcatheters and micro guidewires.
- Device demonstration, operator training and marketing presentations for neuro-interventional products.
- Quantitative blood flow and imaging analysis (CTA, DSA, MRA, OCT, PIV and other modalities).
Customization service options
- Intracranial section: customizable aneurysms, arteriovenous fistulae, embolic lesions and other pathologies on request.
- Aortic arch: interchangeable options including Type I, Type II, Type III and anomalous arches.
- Carotid arteries: additional tortuosities and embolic lesions can be added.
- Bilateral radial artery access can be integrated.
- Abdominal section: complexity increased on demand for downstream vascular anatomy.
- Model customization from customer data files in formats such as CT, CAD, STL, STP, STEP.
Technical specifications
- Model: FAC011D
- Material: Silicone
- Custom service: free design service available
- Payment: T/T
- Lead time: 7-15 days
- Port: Ningbo, China
- Shipping methods: FedEx, DHL, EMS, UPS, TNT
- Anatomical coverage: femoral artery to A2 (anterior cerebral artery) and M2 (middle cerebral artery)
- Intracranial features: complete circle of Willis; four aneurysm lesions
- Right carotid artery: S-shaped tortuous structure
- Mounting: fixed on rigid support and frosted acrylic plate for improved stability
- Sections: intracranial, aortic and radial sections detachable and replaceable via transparent connectors
- Product ID (site): 308574182
