Femoral artery vascular model FAC010Dcirculatory systemintracranialbrain
Add to favorites
Compare this product
Characteristics
- Area of the body
- femoral artery, circulatory system, intracranial, brain, anterior cerebral artery, circle of Willis, cerebral, blood vessels, intracranial artery, middle cerebral artery, arterial system
- Application
- for neurology
- Simulated pathology / condition
- with intracranial aneurysm
- Material
- silicone
- Accessories
- with blood vessels
- Other characteristics
- kit
Description
Product Overview

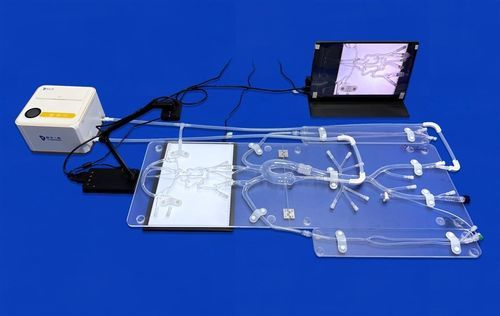

This training and research system includes a neurovascular model, a constant-flow pump and an imaging system (monitor, camera and A4 backlight). Supplied accessories include lubricant (1 bottle), thrombus simulation material (1 box), stainless steel tray, custom aluminium carrying case, portable water bag, syringes, connecting tubing and other standard items.
Components Features
Product Applications
Technical Specifications
This training and research system includes a neurovascular model, a constant-flow pump and an imaging system (monitor, camera and A4 backlight). Supplied accessories include lubricant (1 bottle), thrombus simulation material (1 box), stainless steel tray, custom aluminium carrying case, portable water bag, syringes, connecting tubing and other standard items.
Components Features
- Neurovascular Model: silicone model extending from the femoral artery to the anterior cerebral artery (A2) and middle cerebral artery (M2). Intracranial section includes a complete Circle of Willis, three intracranial aneurysm lesions of different sizes and one embolic lesion. The model is mounted on a frosted acrylic plate. Intracranial, cardiothoracic and abdominal modules connect via custom connectors and can be independently attached, detached and replaced. Vascular geometry and lesion types can be customized per application.
- Constant Flow Pump: demonstrator pump for circulation and adjustable flow rates; compatible with neurovascular, cardiothoracic and other vascular simulation models for procedural training and device testing.
- Imaging System: vascular backplate illumination with a high-definition camera to capture real-time intraluminal images during interventions and display high-resolution video on the monitor.
Product Applications
- Simulation and training for aneurysm embolization, intracranial thrombectomy and cerebral angiography.
- Development, testing and validation of neurointerventional devices such as coils, catheters, guidewires and microcatheters.
- Device demonstration, clinician training and market presentations.
- Quantitative flow and imaging analysis (CTA, DSA, MRA, OCT, PIV).
Technical Specifications
- Model: FAC010D
- Material: Silicone
- Included accessories: lubricant (1 bottle), thrombus material (1 box), stainless steel tray, customised aluminium carrying case, portable water bag, syringes, connecting tubes, other accessories
- Custom service: complimentary design support and technical solutions
- Payment terms: T/T
- Lead time: 7–15 days
- Port of dispatch: Ningbo, China
- Shipping methods: FedEx, DHL, EMS, UPS, TNT
- Product ID: 308573252
