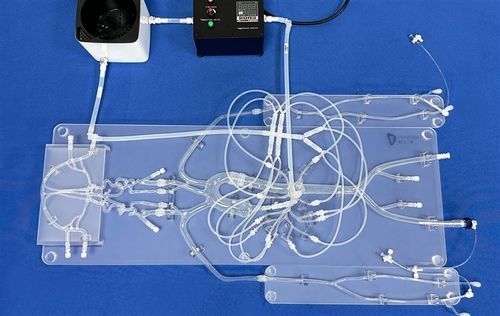

Nervous system vascular model SJZ001Dveinblood vesselsintracranial
Add to favorites
Compare this product
Characteristics
- Area of the body
- nervous system, vein, blood vessels, intracranial, cerebral, brain, artery, brain artery, neuron
- Procedure
- for interventional fluoroscopy, for neurovascular intervention, training
- Material
- silicone
- Accessories
- with blood vessels
- Other characteristics
- 3D-printed
Description
Product Description
The model extends from the femoral artery to the A2 segment of the anterior cerebral artery (ACA) and the M2 segment of the middle cerebral artery (MCA). The intracranial section includes a complete Circle of Willis and incorporates five aneurysm lesions at different locations and with different sizes. two 180°loops and two 360°loops on each side of ICA.
The abdominal arterial system includes major vascular structures such as the celiac artery, hepatic artery, and splenic artery. The abdominal vascular module is connected to the circulation system through customized tubing to enable blood flow circulation simulation within the major abdominal arteries.
Through customized transparent connectors, the intracranial, cardiothoracic, and abdominal modules can be independently connected, disassembled, and replaced. The vascular structures and lesion types of each module can also be customized according to specific requirements.
Product Applications
1.Simulation of aneurysm embolization procedures and cerebral angiography examinations;
2.Development, testing, and validation of neurovascular and peripheral vascular devices, including catheters, guidewires, microcatheters, and microwires;
3.Training and market demonstrations for neurointerventional and peripheral vascular intervention procedures;
4.Quantitative blood flow analysis, including CTA, DSA, MRA, OCT, and PIV.
Customization Services:
1.The intracranial section can be customized with additional lesions such as aneurysms, arteriovenous fistulas (AVFs), and embolization lesions. More tortuous carotid artery structures and embolic lesions can also be added according to requirements.
2.The aortic arch can be customized into Type I, Type II, Type III, or other anatomical variants.
3.More complex abdominal vascular structures and related lesions can be added according to specific requirements.
4.Customized models can be manufactured based on customer-provided CAD, STL, IGS, STEP, and other 3D data formats.
The model extends from the femoral artery to the A2 segment of the anterior cerebral artery (ACA) and the M2 segment of the middle cerebral artery (MCA). The intracranial section includes a complete Circle of Willis and incorporates five aneurysm lesions at different locations and with different sizes. two 180°loops and two 360°loops on each side of ICA.
The abdominal arterial system includes major vascular structures such as the celiac artery, hepatic artery, and splenic artery. The abdominal vascular module is connected to the circulation system through customized tubing to enable blood flow circulation simulation within the major abdominal arteries.
Through customized transparent connectors, the intracranial, cardiothoracic, and abdominal modules can be independently connected, disassembled, and replaced. The vascular structures and lesion types of each module can also be customized according to specific requirements.
Product Applications
1.Simulation of aneurysm embolization procedures and cerebral angiography examinations;
2.Development, testing, and validation of neurovascular and peripheral vascular devices, including catheters, guidewires, microcatheters, and microwires;
3.Training and market demonstrations for neurointerventional and peripheral vascular intervention procedures;
4.Quantitative blood flow analysis, including CTA, DSA, MRA, OCT, and PIV.
Customization Services:
1.The intracranial section can be customized with additional lesions such as aneurysms, arteriovenous fistulas (AVFs), and embolization lesions. More tortuous carotid artery structures and embolic lesions can also be added according to requirements.
2.The aortic arch can be customized into Type I, Type II, Type III, or other anatomical variants.
3.More complex abdominal vascular structures and related lesions can be added according to specific requirements.
4.Customized models can be manufactured based on customer-provided CAD, STL, IGS, STEP, and other 3D data formats.
