Anterior cerebral artery vascular model FAC001D
intracranial arteryinternal carotid arteryvertebral artery

Anterior cerebral artery vascular model - FAC001D - Trando 3D Medical Technology - intracranial artery / internal carotid artery / vertebral artery

Add to favorites

Compare this product

Go to the Trando 3D Medical Technology website for more information

Characteristics

Area of the body: anterior cerebral artery, intracranial artery, internal carotid artery, vertebral artery, circle of Willis, middle cerebral artery
Procedure: for EVT, training, thrombectomy, for angiography, for embolization, for neurovascular intervention
Simulated pathology / condition: stenosis
Material: silicone
Accessories: with blood vessels

Description

Basic Information
Model: FAC001D
Material: Silicone
Custom service: providing free design service & technical solutions
Payment: T/T
Lead time: 7-15 days
Port: Ningbo, China
Shipping Methods: FedEx, DHL, EMS, UPS, TNT

Product Description

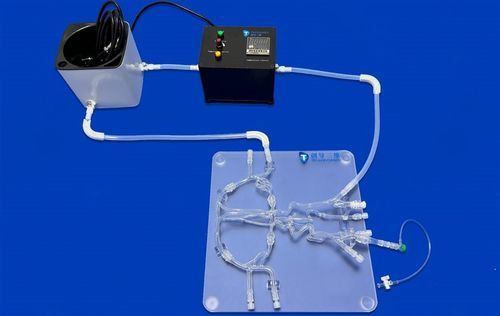

The FAC001D is a planar neurovascular model representing the carotid and vertebral arterial systems, including a complete Circle of Willis, the middle cerebral artery to the M2 segment and the anterior cerebral artery to the A3 segment. The model incorporates one arteriovenous malformation (AVM) and one stenotic lesion; both lesion modules are removable and replaceable for repeated testing.

Product Usage

Simulating stent deployment, mechanical thrombectomy and cerebral angiography procedures.
Development, testing and validation of neuro-interventional devices such as coils, catheters, guidewires, microcatheters and microguidewires.
Training, device demonstration and marketing for clinical and preclinical teams.
Quantitative flow and imaging studies including CTA, DSA, MRA, OCT, PIV and other measurement methods.

Customization Service Options

Intracranial lesions: aneurysms, embolic occlusions and other pathologies can be customized on request.
Carotid anatomy: increased tortuosity and additional embolic lesions can be added.
Model customization from customer data files in CT, CAD, STL, STP, STEP and similar formats.

Specifications

Product type: Planar neurovascular training/testing model
Anatomical features: carotid and vertebral arteries, complete Circle of Willis, MCA to M2, ACA to A3
Lesions included: 1 arteriovenous malformation (AVM) and 1 stenotic lesion; both removable/replaceable
Material: Silicone
Model code: FAC001D
Custom services: lesion customization, tortuosity modification, file-based customization (CT/CAD/STL/STP/STEP)
Intended applications: device development, testing, validation, procedural simulation, training, demonstration, quantitative flow and imaging studies
Payment: T/T
Lead time: 7-15 days
Shipping: FedEx, DHL, EMS, UPS, TNT
