Ultrasound imaging test phantom HD-C02

for CT scanfor MRIfor radiography

Product Overview

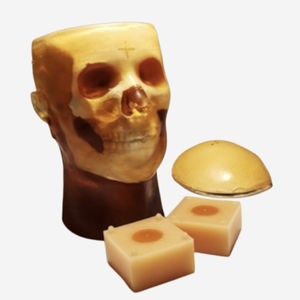

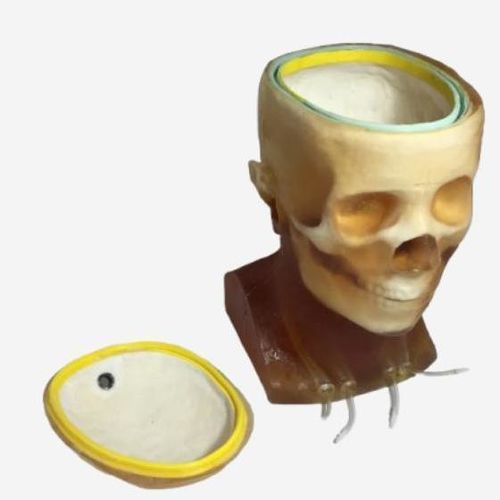

The Adult Head (Modular) phantom HD-C02 is an openable modular head phantom designed for X‑Ray/CT, Ultrasound (US) and MRI applications. The calvaria is openable and removable to allow insertion and exchange of interchangeable brain inserts and accessory modules. Materials and geometry are engineered to reproduce acoustic, radiological and MR relaxation properties for static and dynamic imaging, training and QA tasks.

Anatomy

• Skull phantom — openable and removable calvaria
• Alignment markings for reproducible positioning
• Skin‑mimicking material with acoustically representative properties
• Optional brain inserts (gray matter, ventricles, lesions, hematoma)

Head Phantom Comparison (summary table rows)
Features | Dynamic, Adv. Head | Static Head | Dynamic Head | Standard Head | Training, V1 Head | Hematoma Head | Openable Head
Skull | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
Openable & Removable Calvaria | ✓ | ✖ | ✖ | ✖ | ✖ | ✖ | ✓
Cervical Spine | ✖ | ✓ | ✖ | ✖ | ✓ | ✓ | ✖
Skin‑Mimicking Material | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
Brain (Gray Matter) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✖
Brain Ventricles | ✓ | ✖ | ✖ | ✓ | ✖ | ✓ | ✖
Brain Tumor | ✖ | ✖ | ✖ | ✓ | ✖ | ✖ | ✖
Falx Cerebri | ✖ | ✖ | ✖ | ✓ | ✓ | ✓ | ✖
White Matter | ✖ | ✖ | ✖ | ✖ | ✓ | ✖ | ✖
Brain Vessels (Circle of Willis 2/3/4 mm) | ✓ | ✖ | ✓ | ✓ | ✖ | ✖ | ✖
One Bifurcation | ✓ | ✖ | ✓ | ✓ | ✖ | ✖ | ✖
One Stenosis | ✓ | ✖ | ✓ | ✖ | ✖ | ✖ | ✖
Two Aneurysms | ✓ | ✖ | ✓ | ✖ | ✖ | ✖ | ✖
Plastic Connectors | ✓ | ✖ | ✓ | ✖ | ✖ | ✖ | ✖
Small Static Objects (0.5–3 mm) | ✖ | ✓ (0.5–3 mm) | ✖ | ✖ | ✖ | ✖ | ✖
Realistic Air Cavities / Frontal Sinus | ✖ | ✖ | ✖ | ✖ | ✓ | ✖ | ✖
Hematoma feature | ✖ | ✖ | ✖ | ✖ | ✖ | ✓ | ✖
Alignment Markings | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓

Usage & Procedure (Ultrasound)
For ultrasound scanning fill the skull cavity with water or a suitable coupling liquid via syringe or the rear opening to remove air pockets; alternatively fully submerge the phantom in a water tank and eliminate bubbles between skull and brain insert. After testing drain and dry before storage. For CT and MRI use standard positioning and acquisition protocols; tissues are optimized for realistic T2‑weighted MRI contrast (T1 values are shorter, ~100 ms).

Included in Order

• Adult Head (Modular) Phantom HD-C02
• User manual and assembly instructions
• 2‑year warranty and customer support
• Hard carry case

Technical specifications

• SKU: HD-C02
• Commercial name: Adult Head (Openable / Modular)
• Suitable modalities: X‑Ray / CT, Ultrasound (US), MRI (T2‑optimized)
• Skull: realistic three‑layer structure (cortical + diploe/trabecular + cortical)
• Brain: removable/insertable (not included by default; available on request)
• Appearance: default translucent amber; skin finish available on request
• Available variants: Modular (default), Dynamic, Dynamic Openable, Static, Standard, Training V1, Hematoma, QC1
• Typical phantom size: 12 x 9 x 7 in; shipping size: 23 x 14 x 10 in
• Typical weights: phantom ≈ 17 lbs; shipping ≈ 22 lbs
• Materials: urethane‑based soft resin for soft tissues; ceramic‑reinforced epoxy composite for synthetic bone; protective urethane rubber coating
• Acoustic properties (representative): cortical bone sound velocity 3000 ± 30 m/s; trabecular bone 2800 ± 50 m/s; skin ~1400 ± 10 m/s
• CT HU representative values: trabecular ~800 HU; cortical ~1300 HU; skin ~‑25 HU
• Customization: brain inserts, pathologies (hematoma, tumors, ventricles), vascular inserts and small static objects available as options
