Ultrasound imaging test phantom CT-A03

for radiographyfor tomographyfor CT scan

Overview

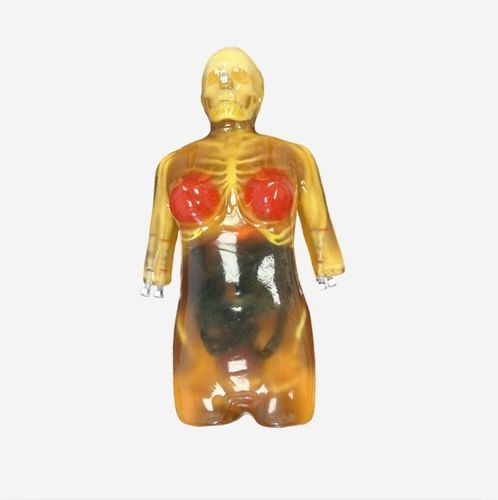

The Adult Female Contrast Phantom is an anatomically realistic training and R&D simulator based on CT data of a healthy 35-year-old female (height 168 cm, BMI ~22). Constructed with tissue-mimicking materials and hollow vasculature, it supports X‑Ray, CT, MRI (optimized for T2-weighted and proton-density sequences), Ultrasound, angiography, fluoroscopy, proton therapy and interventional testing. Hollow vessels accept contrast media, catheters and guidewires for procedural training and device development.

Anatomy

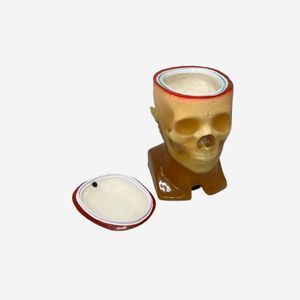

• Skull
• Grey matter
• White matter
• Ventricles
• Complex brain vessels
• One bifurcation
• One stenosis
• Two aneurysms
• Complete spine
• Complete ribcage
• Shoulders and clavicles
• Pelvis
• Partial femoral bones
• Trachea (hollow; allows catheter/endoscope insertion; default diameter in documentation)
• Realistic heart with:
  • Coronary arteries
  • 4 chambers/valves (atria and ventricles)
  • Appendage feature
  • Aorta
  • Flexible valvular structure
  • SVC and IVC
  • Esophagus
• Lungs (static or configurable dynamic inflatable lungs)
• Diaphragm
• Breasts: tissue-mimicking body, mammary fat and gland tissues
• Liver (with ligaments and bile ducts)
• Gallbladder
• Stomach
• Kidneys
• Spleen
• Pancreas
• Large and small intestines (hollow, configurable)
• Bladder
• Cervix
• Vaginal canal
• Ovaries
• Uterus

Features

• Hollow vascular structures compatible with contrast agents (barium sulfate, iodine-based, gadolinium-based, microbubble, iron-oxide) and interventional devices (catheters, guidewires).
• Dynamic heart and lungs: connectable to optional pumps to simulate cardiac and respiratory motion for dynamic imaging and cardiorespiratory research.
• Beating heart details:
  • Cyclic wall motion model
  • Water-fillable chambers with minimal air pockets
  • IV access ports for catheter insertion
  • 0–240 BPM pulsatility
  • Two 0–6 L/min outputs (systole/diastole)
  • Variable pulse length 0–500 ms
  • Arterial pressure output up to 430 mmHg
  • Two 3/8" CPC valved couplings (inlet/outlet)
  • Optional pump control with touchscreen interface
• Breathable lung option:
  • Dynamic inflatable lungs supporting up to 60 breaths/min
  • Volume adjustment in 1 mL steps (~1 L total air volume)
  • Optional pump control with touchscreen interface
• Default translucent amber appearance; skin layer available on request (customizable).
• Minor appearance variations possible due to material characteristics and production tolerances.

Included in Order

• Adult Female Contrast Phantom
• Heart pump (optional)
• Lung pump (optional)
• User manual and assembly instructions
• 2-year warranty and unlimited customer support
• Hard carry case

Technical Properties (sonic, density, attenuation, hardness, T2, speckles)
Type of Tissue | Sound Velocity [m/s] | Density [g/cm3] | Attenuation at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles
Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES
Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES
Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE
Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO
Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | LOW
Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A
Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A

Thermal Properties of Bone-Mimicking Material
Thermal Conductivity: 0.776 W/m·K
Volumetric Specific Heat Capacity: 1.040 MJ/m3·K
Thermal Diffusivity: 0.746 mm2/s
Thermal Resistivity: 1.289 m·K/W
Specific Heat: 0.978 J/g·°C
Speed of Sound: 3070 m/s

HU Values of the Tissue-Mimicking Material (average)
Tissue Type | HU Value (Average)
Brain Tissue | -25
Body Tissue | -25
Trabecular Bone | 800
Cortical Bone | 1300
Aorta | 40
Vena Cava | 40
Trachea | 80 (tissue part), -1000 (air-filled part)
Lungs | -850
Pancreas | 110
Diaphragm | 80
Mammary Fat Tissues | -25
Mammary Gland Tissues | 35
Cervix | 50
Vaginal Canal | 50

Tissue Type | HU Value (Average)
Spleen | 110
Kidneys | 110
Bladder | 35
Rectum Wall | 100
Sigmoid Colon Wall | 100
Heart | 40
Liver | 110
Gallbladder | 35
Stomach | -850
Large and Small Intestines | 80 (tissue part), -1000 (air-filled part)
Ovaries | 50
Uterus | 50

Notes
• Vascular structures are hollow and designed for circulation of contrast media and insertion of interventional devices.
• MRI compatibility: T2 relaxation times are realistic for T2-weighted imaging; proton-density imaging gives good results. T1 values are shorter (~100 ms) but T1-weighted sequences remain possible.
• Dynamic heart and lungs require optional pump hardware for motion simulation.

Specifications / Technical specifications

• Commercial model name: Adult Female Contrast Phantom
• SKU: CT-A03
• Brand: True Phantom Solutions
• Supported modalities: X‑Ray, CT, MRI (best for T2-weighted), Ultrasound, angiography, fluoroscopy, proton therapy
• Contrast compatibility: barium sulfate, iodine-based, gadolinium-based, microbubble, iron-oxide agents
• Vascular access: hollow vasculature for catheters and guidewires
• Dynamic simulation: optional heart and lung pumps (connectable)
• Primary soft-tissue materials: urethane-based soft resin; synthetic bones: ceramic-reinforced epoxy composite
• Default appearance: translucent amber; skin feature available on request
• Package includes: phantom, hard carry case, user manual; pump(s) optional
• Warranty: 2 years
• Approx. phantom size: 33 x 21 x 11 inches; weight: ~83 lbs (shipped with hard carry case on wooden pallet; shipped weight ~140 lbs)
• Price (listed): 34,980 (currency specified separately)
