Ultrasound imaging veterinary test phantom CN-A01

MRICT ScanX-ray

Overview

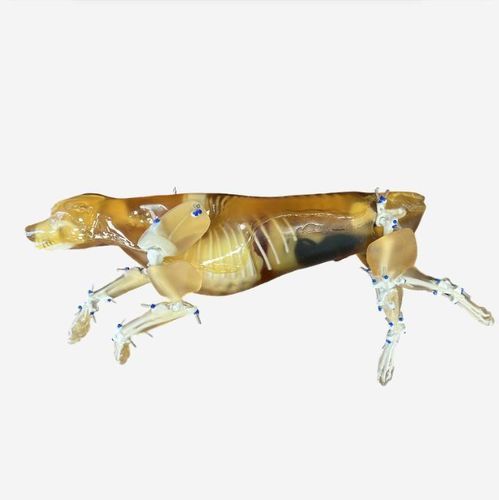

The Canine Phantom CN-A01 is an anatomical training model designed for practical veterinary imaging and procedural training across X-ray, CT, ultrasound and MRI. Derived from a real CT dataset and refined with AI, it reproduces complex soft-tissue and vascular anatomy with high anatomical fidelity. The model is scaled for handling (16 kg) and features improved articulating joints for realistic positioning practice.

Key enhancements

• Articulating joints: Improved joint mobility to simulate realistic positioning and manipulation for X-ray and procedure practice.
• Durable construction: Materials and assembly designed for repeated use in clinical training environments.
• Advanced vascular detailing: Refined vasculature in liver, spleen and pancreas for accurate organ positioning and imaging realism.
• Realistic heart: Internal chambers, valves and major vessels (IVC, SVC, aorta) included for cardiac imaging scenarios.
• Extended anatomical accuracy: Detailed vasculature and a realistic intestinal tract (small and large intestines, caecum, rectum) to support diagnostic and interventional training.

Anatomy included (standard version)

• Adult canine head
  • Skull
  • Jaw bone
• Adult canine torso
  • Complete spine
  • Complete ribcage
  • Shoulder (scapula bones)
  • Pelvis
  • Realistic heart with internal structures: valves, chambers, major heart vessels (IVC, SVC, aorta)
  • Lungs
  • Diaphragm
  • Stomach
  • Liver with vessels
  • Gallbladder
  • Kidneys with vessels and arteries
  • Spleen with vessels
  • Large intestine
  • Small intestine
  • Caecum
  • Rectum
  • Pancreas with vessels
  • Bladder
  • Ureters
• Adult canine front arms
• Adult canine rear legs

Imaging & MRI properties

• Supports X-ray positioning, CT, ultrasound (US) and MRI applications.
• MRI tuning: tissues are adjusted to realistic T2 relaxation times, making the phantom well suited for T2-weighted and proton-density imaging. T1-weighted imaging is feasible but T1 values are less realistic (order of magnitude ≈ 100 ms).
• Appearance may vary slightly due to material characteristics and production tolerances.

Technical properties (representative values)

• Organs with speckles (liver, kidneys, etc.): Sound velocity 1435 ± 10 m/s; Density 0.99 g/cm3; Attenuation at 2.25 MHz 1.0 ± 0.2 dB/cm; Hardness Shore OO 20; T2 ≈ 70 ms; Speckles: VARIABLE.
• Organs without speckles (stomach, intestines, etc.): Sound velocity 1400 ± 10 m/s; Density 0.99 g/cm3; Attenuation at 2.25 MHz 1.0 ± 0.2 dB/cm; Hardness Shore OO 20; T2 ≈ 70 ms; Speckles: NO.
• Body tissue: Sound velocity 1410 ± 10 m/s; Density 1.00 g/cm3; Attenuation at 2.25 MHz 1.2 ± 0.2 dB/cm; Hardness Shore OO 30; T2 ≈ 65 ms; Speckles: LOW.

HU values of tissue-mimicking materials (average)

• Body Tissue: -25
• Aorta: 40
• Vena Cava: 40
• Trachea: 80 (tissue part), -1000 (air-filled part)
• Pancreas: 110
• Spleen: 110
• Kidneys: 110
• Bladder: 35
• Rectum Wall: 100
• Sigmoid Colon Wall: 100
• Heart: 40
• Liver: 110
• Gallbladder: 35

Included in order

• Canine Phantom CN-A01
• User manual and assembly instructions
• 2-year warranty and unlimited customer service
• Hard carry case
