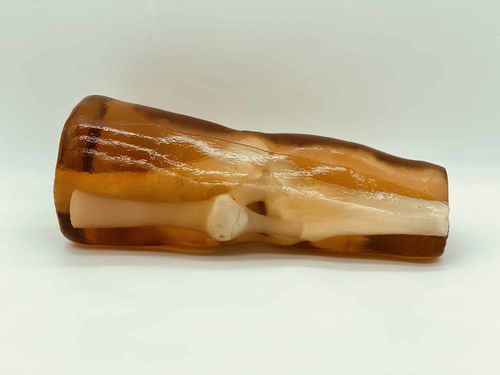

Ultrasound imaging test phantom KE-A01

for CT scanfor MRIknee

The Adult Knee phantom is designed around the structure of an average adult human knee. It comprises synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT, US, and MRI imaging, it serves medical imaging research and orthopedic-related studies. PLEASE NOTE: WE CAN CUSTOMIZE THIS PRODUCT BASED ON YOUR REQUIREMENTS The Adult Knee phantom has a complex internal structure and anatomy, which are based on an average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray CT and US imaging applications. The soft tissues, tendons, ligaments, and cartilage are made from realistic urethane-based tissue-mimicking materials. The phantom can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related work. This product can be further customized to match a wide variety of project requirements. Anatomy: Partial Upper Leg Partial Lower Leg Patella Meniscus: Lateral MeniscusMedial Meniscus Condyle: Lateral Condyle FemoralMedial Condyle Femoral Ligaments and Tendons: Quadriceps Femoris Tendon Patellar Ligament Lateral Patellar Retinaculum Medial Patellar Retinaculum Anterior Cruciate Ligament Posterior Cruciate Ligament Arcuate Popliteal Ligament Oblique popliteal Ligament Bursa: Subtendinous Bursa (3) Semimembranosus Bursa Pes anserine Bursa Infrapatellar Bursa Prepatellar Bursa Iliotibial Band Bursa Included in Order: Adult Knee Phantom User Manual/Assembly Instructions 2-Year Warranty & Unlimited Customer Service Hard Carry Case Size & Weight: Phantom: Size: 6 x 7 x 15 Inches; Weight: 18 Lbs (approx.) Shipment: Size: 32 x 23 x 13 Inches; Weight: 26 Lbs (approx.) Materials Used: Soft tissue and organs: Composition of urethane-based soft resin Synthetic bones: Patented ceramic-reinforced epoxy-based composite material Technical Properties: Type of TissueSound Velocity [m/s]Density [g/cm³]Hardness [Shore 00]T2 [ms]Hounsfield ValueAttenuation at 2.25 MHz [dB/cm]Cortical Bone3000 ± 302.31N/AN/A13006.4 ± 0.3Trabecular Bone2800 ± 502.03N/AN/A130021 ± 2Soft Tissue1410 ± 101.026050 ms251.7 ± 0.2 Thermal Properties of Bone-Mimicking Material: Thermal ConductivityVolumetric Specific Heat CapacityThermal DiffusivityThermal ResistivitySpecific HeatSpeed of Sound0.776 W/ m K1.040 MJ/ m³ K0.746 mm²/ s1.289 m K/ W0.978 J/ g Deg Celsius3070 m/s HU Values of the Tissue-Mimicking Materials: S.No.Tissue TypeHU Value (average)1Trabecular Bone8002Cortical Bone1300 Product Details: Knee Model: Ligaments/Tendons, Bones Only Note: By default, the phantom comes in a translucent amber appearance. The skin finish can be included upon request. Characteristics / Technical Specifications: Model: KE-A01 Imaging compatibility: X-Ray, CT, US, MRI Customizable: Yes Weight: 18 lbs (phantom), 26 lbs (shipment) Dimensions: 6 x 7 x 15 in (phantom), 32 x 23 x 13 in (shipment) Materials: Urethane-based soft resin (soft tissue), patented ceramic-reinforced epoxy-based composite (bones) Warranty: 2 years
