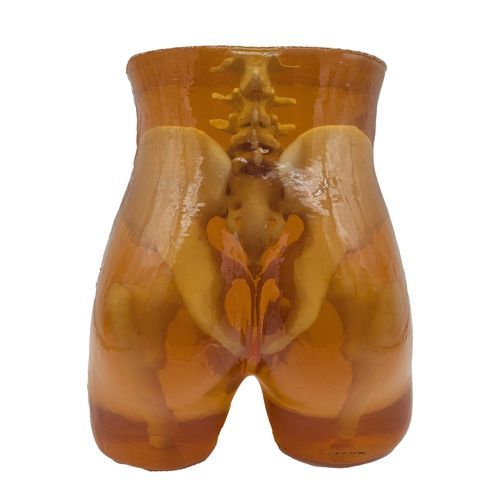

Ultrasound imaging test phantom PE-A01

for CT scanfor MRIpelvis

The Adult Pelvis Phantom is a realistic training tool and research device for medical imaging. Made of patented bone material, it is suitable for X-Ray/CT, US, and MRI imaging. Customizable in size and shape, it offers a three-layered structure with adjustable porosity for specific project needs.PLEASE NOTE: WE CAN CUSTOMIZE THIS PRODUCT BASED ON YOUR REQUIREMENTSThe Adult Pelvis Phantom’s structure and geometry is designed based on an average adult human (male). It is made out of realistic patented bone material that is suitable for X-Ray/CT and MRI imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related purposes. This product can be further customized to match our client’s specific requirements.In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.The bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of wide variety of projects. The phantom can also be customized in size and shape (i.e. based on any individual’s CT scan).Spine (L5 – L2)Pelvis BonePartial Left and Right Femoral BonesNote: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.Custom Fat Layer with the pelvis (optional add-on): This is a custom fat layer which can be added upon request. With the addition of this fat layer, BMI of the phantom was increased to 33.Included in Order:Adult Pelvis PhantomUser Manual/Assembly Instructions2-Year Warranty & Unlimited Customer ServiceHard Carry CaseSize & Weight:Phantom Size: 14 x 10 x 16 InchesPhantom Weight: 49 Lbs (approx.)Shipment Size: 32 x 23 x 13 InchesShipment Weight: 88 Lbs (approx.)Materials Used:Soft tissue and organs: Composition of urethane-based soft resinSynthetic bones: Patented ceramic-reinforced epoxy-based composite materialType of TissueSound Velocity [m/s]Density [g/cm³]Hardness [Shore 00]T2 [ms]Hounsfield ValueAttenuation Measured at 2.25 MHz [dB/cm]Cortical Bone3000 ± 302.31N/AN/A13006.4 ± 0.3Trabecular Bone2800 ± 502.03N/AN/A130021 ± 2Soft Tissue1410 ± 101.026050 ms251.7 ± 0.2Thermal Properties of Bone-Mimicking MaterialThermal ConductivityVolumetric Specific Heat CapacityThermal DiffusivityThermal ResistivitySpecific HeatSpeed of Sound0.776 W/ m K1.040 MJ/ m^3 K0.746 mm^2/ s1.289 m K/ W0.978 J/ g Deg Celsius3070 m/sHU Values of the Tissue Mimicking-MaterialsS.No.Tissue TypeHU Value (Average)1Soft Tissue-252Trabecular Bone8003Cortical Bone13004Bladder355Rectum Wall1006Sigmoid Colon Wall100Pelvis Model: Without Organs, With OrgansTags: hip phantom, MRI phantom, pelvis phantom, x-ray phantomCategories: Adults, All Products, X-Ray CT, US, MRISKU: PE-A01Warranty: 2-Year Warranty & Unlimited Customer ServiceCustomizable: Yes, based on requirements or individual CT scanDefault Appearance: Translucent amber (skin feature optional)Optional Add-on: Custom fat layer (BMI up to 33)Applications: X-Ray/CT, MRI, US imaging, research, training, calibrationImaging Properties: Realistic T2 relaxation times for MRI, suitable for T2-weighted and proton-density imaging, T1 values ~100 msStructure: Three-layered bone structure with adjustable porosity
