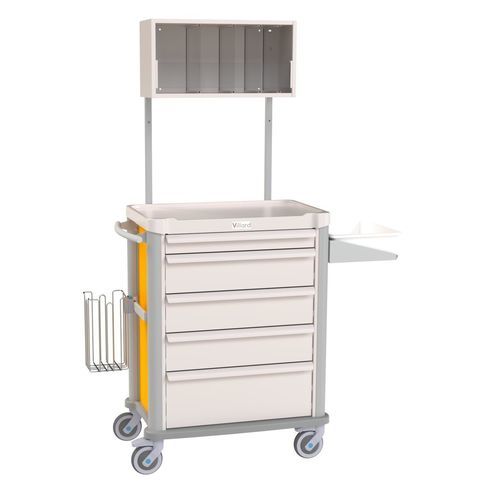

Medical trolley Eolis®

hospitaltransportstorage

Overview Modular design with ABS internal ladders (slides) compatible with accessories in ISO 600 x 400 format (drawers, trays, bins). Open-front cart closed on five sides; closure by contiguous drawers or removable ABS roller shutter (top-down). Anodized aluminium and epoxy-coated steel frame; ABS side and back panels; wrap-around ABS bumper (grey). Worktop in ABS/PMMA (beige) with side edges — 705 x 415 mm (with drawers) or 705 x 480 mm (with roller shutter). Supplied with an ergonomic push handle and two standardized rails (one per side), height-adjustable. Swivel castors Ø 125 mm, two with brake; polyamide forks; grey non-marking rubber tread; stainless steel ball bearings; fitted with wire guards.

Supplied as standard

• Centralized locking with coded lock + key
• 5 contiguous drawers 600 x 400: 1 × 1-module (H 75 mm), 3 × 2-modules (H 150 mm), 1 × 3-modules (H 225 mm)
• Portico fitted with 1 jersey dispenser
• Side support with plastic soaking tray
• Single stainless steel waste-bag holder 20 L
• 1 ergonomic push handle and 2 standardized rails adjustable in height
• Swivel castors Ø 125 mm (2 with brake), polyamide forks, grey non-marking rubber tread, stainless steel ball bearings, fitted with wire guards

Technical specifications

• Product reference: 1006.01P02
• Model / commercial name: Eolis®
• Overall dimensions (L × D × H): 830 × 510 × 1015 mm
• Capacity: 10 modules
• Drawer / bin format: ISO 600 x 400
• Structural composition: anodized aluminium frame and epoxy-coated steel
• Panels: ABS (sides and back)
• Worktop: ABS/PMMA (beige) — 705 × 415 mm (with drawers) or 705 × 480 mm (with roller shutter)
• Drawers supplied: 1 × 1-module (H 75 mm), 3 × 2-modules (H 150 mm), 1 × 3-modules (H 225 mm)
• Closure: contiguous drawers or removable ABS roller shutter (top-down); centralized locking optional or supplied per configuration
• Bumper: wrap-around ABS (grey)
• Available colours (example): Saffron (plus 7 other colours)
• Included accessories: portico with jersey dispenser, side support with plastic soaking tray, 20 L stainless steel waste-bag holder
• Wheels: Ø 125 mm, 2 with brake, polyamide forks, grey non-marking rubber tread, stainless steel ball bearings, fitted with wire guards
