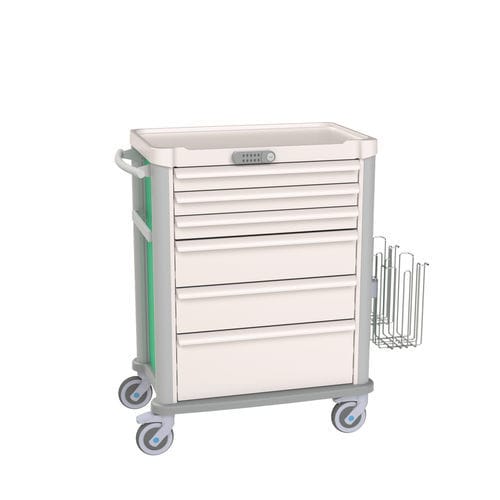

Medical trolley Eolis®

hospitalfor consumablestransport

The Eolis® 600 x 400 care trolley is a modular unit designed to accommodate ISO 600 x 400 accessories for healthcare departments. It features an open front, a mixed anodized aluminium and epoxy-coated steel frame, and can be configured with drawers or a removable roller shutter in ABS.

Equipped as standard :

• Centralised locking with code lock + key
• 6 contiguous drawers with handles (3 × 1-module + 2 × 2-modules + 1 × 3-modules)
• Double stainless-steel 20 L waste bag holders

Technical description :

• Modular design with internal ABS ladder rails to fit drawers, bins and trays in ISO 600 x 400 format
• Open-front trolley, closed on 5 sides; closure ensured by contiguous drawers or by a removable ABS roller shutter (top→bottom)
• Mixed structure: anodized aluminium and epoxy-coated steel; side panels and base in ABS (8 colours available); wraparound ABS bumper (grey)
• Worktop in ABS/PMMA (beige) with raised lateral edges
• Ergonomic manoeuvring handle and two standardized height-adjustable rails (one per side)
• Swivel wheels Ø 125 mm, two with brake; polyamide fork; grey non-marking rubber tread; stainless-steel ball bearings; fitted with wire guards

Specifications / technical data :

• Product reference: 1006.01T04
• Accessory format: ISO 600 x 400
• Overall dimensions (L × D × H): 830 × 510 × 1015 mm
• Empty weight: 27.5 kg
• Capacity: 10 modules
• Worktop: ABS/PMMA, dimensions 705 × 415 mm
• Available colours: plum, green
• Wheels: Ø 125 mm (2 with brake), polyamide fork, grey non-marking rubber tread, stainless-steel ball bearings
• Stock: In stock - Factory lead time J+15
