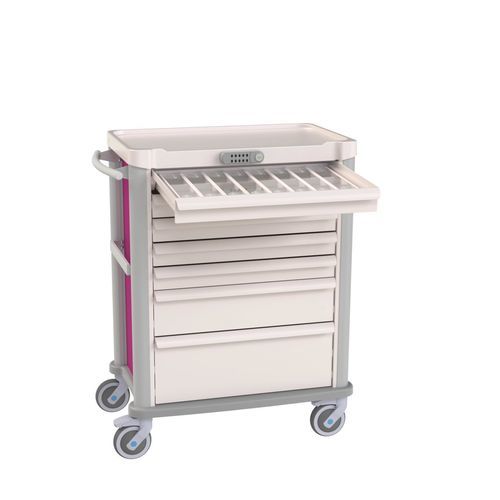

Medical trolley Eolis®

hospitalfor medicinemedicine distribution

Modular medication trolley Eolis® designed to accept ISO 600x400 accessories and drawers. It combines an anodized aluminium/epoxy steel frame with ABS panels, an ABS/PMMA worktop and Ø125 mm swivel castors for easy and secure handling.

Standard equipment:

• central locking by coded lock + key
• 5 adjacent drawers with 600x400 H handle; 1 module fitted with 40 pill organizers L. 1/8 for drawers
• 2 adjacent drawers with 600x400 handle (1 x 2-module + 1 x 3-module)

Main functional features:

• Modular design with internal ABS uprights (rails) to equip ISO 600x400 accessories (drawers, bins, trays)
• Open front, cart closed on 5 sides — closure by adjacent drawers or removable ABS roller shutter (top → bottom) — centralized locking optional
• Anodized aluminium and epoxy steel frame; ABS side and bottom panels; wrap-around ABS bumper (grey)
• ABS/PMMA worktop (beige) with raised side edges — worktop dimensions: 705 x 415 mm
• 1 ergonomic push handle and 2 standardized rails (one each side), height-adjustable
• Ø125 mm swivel wheels (2 with brake) — polyamide fork, non-marking grey rubber tread, stainless ball bearings — fitted with anti-thread guards

Technical specifications:

• Reference: 1006.01M01
• Commercial name: Eolis®
• Overall dimensions (L x D x H): 830 x 510 x 1015 mm
• Empty weight: 27.5 kg
• Capacity: 10 modules
• Available colour(s): Blue
