Medical trolley Eolis®

emergencyhospitaltransport

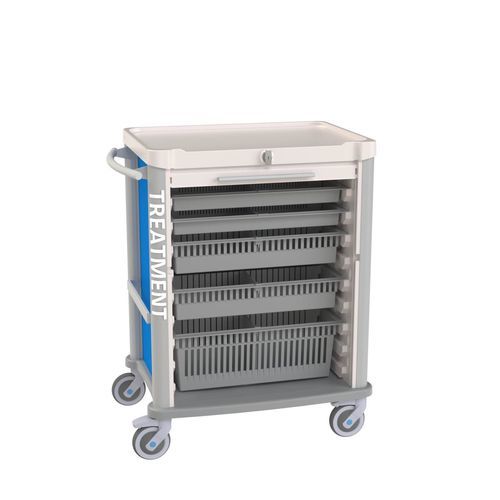

Modular medical care trolley Eolis® designed for organisation and transport of ISO 600x400 equipment. Removable roller shutter front, equipped configuration T01.

Standard equipment

• Ergonomic manoeuvring handle
• 2 standardized rails (one each side), height-adjustable

Technical design (design principles)

• Modular construction with internal ABS ladder-type slides to mount ISO 600x400 accessories (drawers, bins, trays)
• Open front, closed on 5 sides — closure via flush-fitting drawers or removable ABS roller shutter (movement top → bottom)
• Structure combining anodized aluminium and epoxy-coated steel; panels (sides and base) in ABS
• Worktop in ABS/PMMA (beige) with side upstands
• Swivel castors Ø 125 mm (2 with brake) with polyamide forks, non-marking grey rubber tread, stainless steel ball bearings and anti-thread guards

Technical data / specifications

• Commercial name: Eolis®
• Product reference (SKU): 1006.11T01
• Overall dimensions (L x D x H): 830 x 590 x 1015 mm
• Capacity: 9 modules
• Accepted accessory format: ISO 600 x 400
• Worktop: 705 x 480 mm (ABS/PMMA, beige)
• Materials: anodized aluminium and epoxy steel frame; ABS panels; wraparound ABS bumper (grey)
• Wheels: Ø 125 mm, 2 with brake, polyamide forks, non-marking grey rubber tread, stainless steel ball bearings
• Closure options: flush drawers or removable ABS roller shutter (central locking optional)
• Panel colours available: plum, lilac, green, blue, saffron, red, coral, grey

Recommended applications

• Use in hospitals, clinics and care facilities for storage and transport of medical supplies
• Configurable for medication rounds, wound care, emergency trolleys or procedure carts
