Emergency trolley Eolis®

anesthesiahospitaltransport

Overview

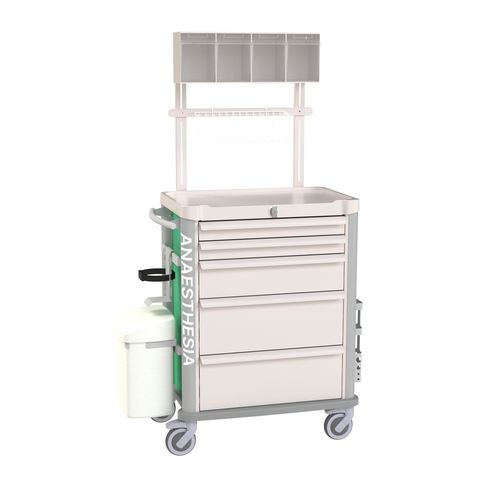

Modular anesthesia trolley from the Eolis® range, A02 configuration. Designed to accept ISO 600x400 accessories with an open-front layout and closure options via contiguous drawers or removable ABS roller shutter.

Standard equipment

• 1 ergonomic maneuver handle
• 2 standardized rails (1 per side), height-adjustable
• Central locking with coded lock + key
• 6 contiguous drawers 600x400 (3 x 1-module + 2 x 2-module + 1 x 3-module)
• Frame fitted with 2 rows of tilt boxes (5 + 4 boxes)
• Probe holder 1 compartment
• Double stainless-steel waste bag supports 20 L

Technical description
• Modular design with internal ABS ladders (slides) to accommodate ISO 600x400 accessories (drawers, bins, trays).
• Open-front trolley, closed on 5 sides — Closure by contiguous drawers or removable ABS roller shutter (top to bottom) — Central locking optional.
• Anodized aluminum and epoxy-steel structure — ABS panels (sides and back), 8 color options — Wrap-around ABS bumper (grey).
• Worktop in ABS/PMMA (beige) with side upstands — Dim. 705 x 415 mm (with drawers) or 705 x 480 mm (with roller shutter).
• Swivel castors Ø 125 mm, 2 with brake — Polyamide fork — Grey non-marking rubber tread — Stainless steel ball bearings — Equipped with wire guards.

Use & benefits
Modular trolley intended for anesthesia/emergency departments, allowing bespoke configuration with ISO 600x400 modules (drawers, bins, tilt boxes). Engineered for long service life (aluminum/steel structure, ABS panels) and easy handling (ergonomic handle, Ø125 mm braked castors).

Specifications / technical data

• Internal reference / SKU: 1006.01A02
• Series / commercial model: Eolis®
• Compatible module format: ISO 600x400
• Standard drawer configuration: 6 contiguous drawers (3 x 1-module + 2 x 2-module + 1 x 3-module)
• Frame: 2 rows of tilt boxes (5 + 4)
• Probe holder: 1 compartment
• Waste bag supports: double stainless-steel 20 L
• Worktop: ABS/PMMA, 705 x 415 mm (drawers) or 705 x 480 mm (roller shutter)
• Structure: anodized aluminum + epoxy steel, ABS panels (sides and back), ABS bumper
• Wheels: Ø 125 mm swivel, 2 with brake, polyamide fork, non-marking grey rubber tread, stainless bearings, wire guards
