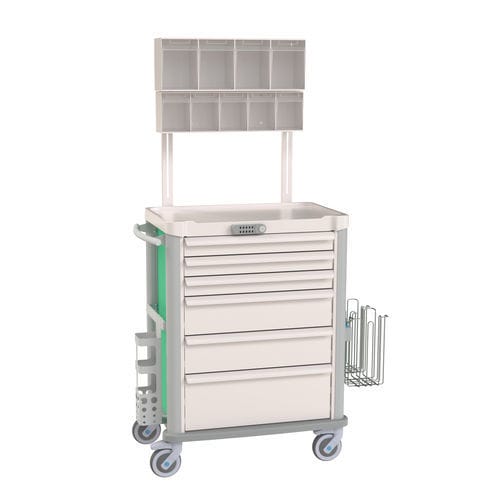

Anesthesia trolley Eolis®

transportwastestorage

Availability
► In stock - factory dispatch lead time: J+15

Overview
Pre-configured anesthesia cart - Ref. 1006.01A05 supplied as standard with:

• 1 ergonomic manoeuvre handle
• 2 standardized rails (one per side), height-adjustable
• centralized locking with code lock + key
• 6 contiguous drawers 600x400 (3 x 1-module + 2 x 2-modules + 1 x 3-modules)
• port frame fitted with 2 rows of tilting bins (5 + 4 bins)
• probe holder, 1 compartment
• double stainless steel waste bag holders 20L

Technical description

• Modular design with internal ladder rails (glides) in ABS to fit accessories (drawers, bins, trays) in ISO 600x400 format
• Open-front cart, closed on 5 sides - Closure by contiguous drawers or by removable ABS roller shutter (top-down) - Centralized locking optional
• Structure in anodized aluminium and epoxy-coated steel - ABS panels (sides and back), 8 colours available - Enveloping ABS bumper (grey)
• Worktop in ABS/PMMA (beige) with raised edges - Dimensions: 705 x 415 mm (with drawers) or 705 x 480 mm (with roller shutter)
• Swivel castors Ø 125 mm, 2 with brake - Polyamide forks - Grey non-marking rubber tread - Stainless steel ball bearings - Fitted with cable guards

Technical specifications

• Reference: 1006.01A05
• Model / Series: Eolis®
• Drawer / accessory format: ISO 600x400
• Capacity: 10 modules
• Worktop: 705 x 415 mm (with drawers) or 705 x 480 mm (with roller shutter)
• Wheels: Ø 125 mm (2 with brake), polyamide forks, grey non-marking rubber tread, stainless steel ball bearings
• Structure: anodized aluminium and epoxy-coated steel
• Panels: ABS (sides and back) - 8 colours available
• Bumper: enveloping ABS (grey)
• Closure options: contiguous drawers or removable ABS roller shutter
• Locking: centralized (presented option: code lock + key)
• Waste support: double stainless steel bag supports 20L
• Available colours: prune, green
• Overall dimensions (L x D x H): on request
• Empty weight: on request
