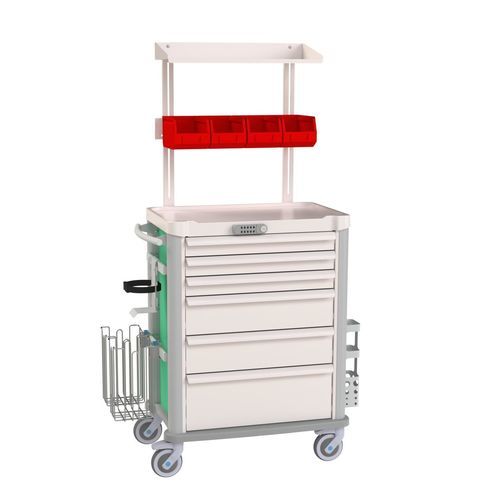

Anesthesia trolley Eolis®

for operating roomshospitalstainless steel

Modular anesthesia trolley from the Eolis® series, designed to organise and store medical equipment in ISO 600x400 format. It pairs an anodised aluminium/epoxy steel frame with ABS panels and an ergonomic worktop for hospital environments.

Pre-configured as standard with:

• centralised locking with coded lock + key
• 6 flush drawers 600x400 (3 x 1-module + 2 x 2-modules + 1 x 3-modules)
• gantry equipped with 1 shelf and 1 holder for tilt bins, supplied with 4 red 3.5 L tilt bins
• probe holder (1 compartment)
• double stainless-steel waste bag holders 20 L

Technical points and construction:

• Modular design with internal ABS ladders (slides) allowing fitting of ISO 600x400 accessories (drawers, bins, trays).
• Open front, chassis closed on 5 sides; closure by flush drawers or removable ABS roll-top shutter (top → bottom) — central locking optional.
• Frame in anodised aluminium and epoxy-coated steel; side panels and back in ABS; wrap-around ABS bumper (grey finish).
• Worktop in ABS/PMMA (beige) with raised side edges — dimensions: 705 x 415 mm (drawer version) or 705 x 480 mm (roll-top version).
• Supplied with an ergonomic manoeuvring handle and 2 standard rails (one each side), height-adjustable.
• Swivel castors Ø 125 mm (2 with brake); forks in polyamide; grey non-marking rubber tread; stainless-steel ball bearings; fitted with cable guards.

Availability:

• In stock - factory dispatch lead time J+15 (15 working days)

Characteristics / technical specifications:

• Capacity: 10 modules
• Panel colours available: prune, green
• Compatible accessory format: ISO 600x400
• Worktop: ABS/PMMA (beige) — 705 x 415 mm (drawers) or 705 x 480 mm (roll-top)
• Wheels: Ø 125 mm (2 braked), polyamide fork, grey non-marking rubber tread
• Structure: anodised aluminium + epoxy steel; ABS panels
• Items supplied as standard: centralised locking (code + key), 6 drawers 600x400, gantry with shelf and bin holder, probe holder, double stainless-steel waste bag holders 20 L
