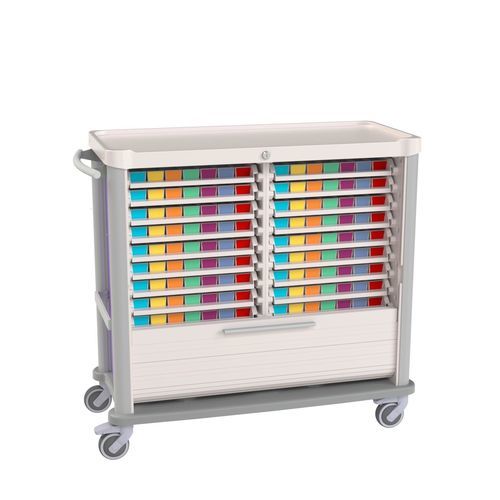

Medical trolley Eolis® COMPACT

hospitalfor consumablestransport

Overview

Modular medical cart designed for treatment and supply distribution, manufactured from recycled materials and fully recyclable. The Eolis® COMPACT - Double features a modular interior compatible with COMPACT-format accessories (drawers, bins, trays), an ABS roll-up shutter and optional centralized locking.

Key features

• Eco-designed medical cart made from recycled materials and 100% recyclable; manufactured in France.
• Modular concept with ABS internal uprights (rails) for adding COMPACT-format accessories (drawers, bins, trays).
• Open front, closed on 5 sides; removable ABS roll-up shutter (bottom→top) for closure; centralized locking optional.
• Combined frame: anodized aluminium and epoxy-coated steel; side and back panels in ABS available in 8 colours; wrap-around ABS bumper (grey).
• Worktop in ABS/PMMA (beige) with side upstands — dimensions: 1000 x 420 mm.
• Standard equipment: 1 ergonomic push handle and 2 standardized rails (one each side), height-adjustable.
• Castors Ø125 mm, 2 with brake; polyamide fork; non-marking grey rubber tread; stainless ball bearings; fitted with wire guards.

Configuration options (available models/variants)

• 2 × 16 modules
• 2 × 14 modules
• 2 × 12 modules

Accessories / available options (examples shown on the sheet)

• SHA supports (fixing on cart) — Ref. 1101.02
• Adjustable-height IT arm with secured laptop tray — Ref. 1600.61
• 30L waste bag supports — Ref. 1501.23 (Single/Double)
• Storage basket — Ref. 494.21 (selectable dimensions)
• Universal holder for OPCT collector — Ref. 1101.97
• Foldable side shelf — Ref. 1500.01
• Eolis® COMPACT trays — Ref. 1500.43
• Centralized locking with key / badge/code options — Ref. 1501.01
• Eolis® COMPACT bins (1 to 3 modules) — Ref. 1500.50

Technical specifications

• Product reference (displayed SKU): 1005.06
• Model: Eolis® COMPACT
• Overall dimensions (L x D x H): 1120 x 510 x 1275 / 1155 / 1040 mm (different heights/variants indicated)
• Empty weight: 45 kg
• Worktop: ABS/PMMA — 1000 x 420 mm
• Castors: Ø 125 mm (2 with brake), polyamide fork, non-marking rubber tread, stainless ball bearings
• Materials: anodized aluminium + epoxy-coated steel frame; ABS panels; ABS roll-up shutter
• Available colours: prune, lilac, green, blue, saffron, red, coral, grey
