Hospital trolley Eolis®

medicalfor medicinestorage

Overview

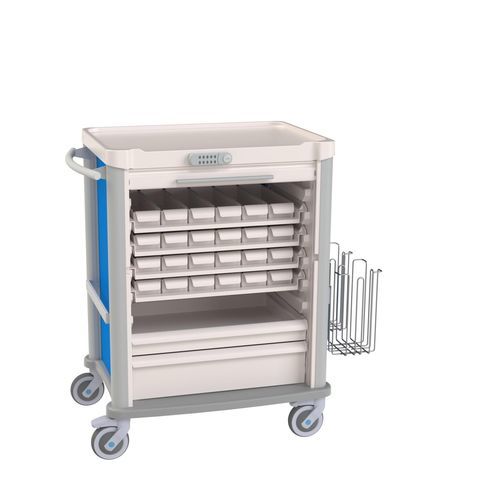

Modular medication cart Eolis® 600x400 configured with a roller shutter (M03). ► In stock - factory dispatch lead time J+15

Standard equipment

• Roller shutter with centralized locking by code lock + key
• 4 trays 600x400 fitted with 24 named bins (W. 1/6 x H. 1 module) with handle and label holder
• 2 contiguous drawers with 600x400 handle (1 x 1 module + 1 x 2 modules)
• Double stainless-steel 20L waste bag holders

Technical description
Modular design with internal uprights (glides) in ABS allowing installation of ISO 600x400 accessories (drawers, bins, trays). Open-front cart closed on 5 sides. Closure possible with contiguous drawers or removable ABS roller shutter (top-down). Frame in anodized aluminium and epoxy-coated steel, ABS panels (sides and back) available in 8 colours, wrap-around ABS bumper (grey). Worktop in ABS/PMMA (beige) with side upstands, dimensions 705 x 480 mm. Supplied as standard with an ergonomic manoeuvre handle and two standardized height-adjustable rails (one each side). Swivel wheels Ø 125 mm (2 with brake) with polyamide forks, non-marking grey rubber tread, stainless steel ball bearings; fitted with anti-thread devices.

Composition (pre-configured ref. 1006.11M03)

• Roller shutter with centralized locking by code lock + key
• 4 trays 600x400 fitted with 24 named bins (W. 1/6 x H. 1 module) with handle and label holder
• 2 contiguous drawers 600x400 with handle (1 x 1 module + 1 x 2 modules)
• Double stainless-steel 20L waste bag holders

Stock note
► In stock - factory dispatch lead time J+15

Technical characteristics / specifications

• Reference: 1006.11M03
• Model / commercial name: Eolis®
• Overall dimensions (L x D x H): 830 x 510 x 1015 mm
• Worktop: ABS/PMMA, 705 x 480 mm
• Empty weight: 27.5 kg
• Capacity: 9 modules
• Available colour(s): blue (ABS panels available in 8 colours)
• Accessory format: ISO 600 x 400
• Wheels: Ø 125 mm, 2 with brake, polyamide forks, non-marking grey rubber tread, stainless steel ball bearings
• Closure: contiguous drawers or removable ABS roller shutter (central locking optional depending on configuration)
• Accessories supplied as standard: 4 trays 600x400 (24 named bins), 2 contiguous drawers 600x400, double 20L stainless waste bag holder, handle and adjustable rails
• Manufacturer warranty: up to 10 years (manufacturer conditions)
