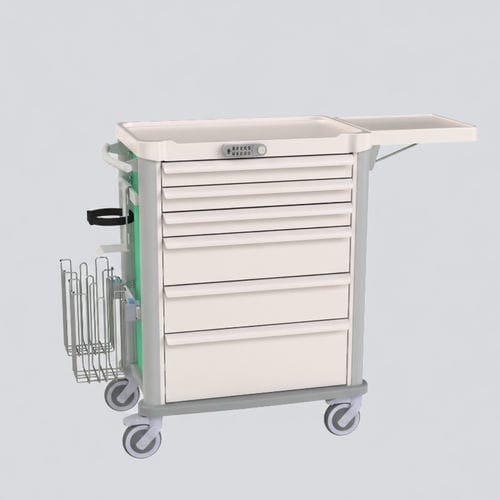

Medical trolley Eolis®

hospitalfor consumablesfor medical devices

Modular medical trolley from the Eolis® range, eco-designed and manufactured in France for storage and preparation of equipment in ISO 600x400 format. Lightweight anodized aluminium and epoxy steel frame with ABS components for modularity, durability and easy maintenance.

Standard configuration

• Central locking with code lock + key
• 6 contiguous drawers with handle (3 × 1-module + 2 × 2-modules + 1 × 3-modules)
• 1 additional lateral rail
• Double stainless steel 20 L waste-bag holders
• Universal mount for OPCT collector
• Folding lateral shelf

Design and construction

• Eco-designed from recycled materials and fully recyclable. Made in France.
• Modular concept with internal ABS ladder rails allowing installation of ISO 600x400 accessories (drawers, bins, trays).
• Open front, closed on five sides; closure by contiguous drawers or removable ABS roller shutter (optional centralized lock).
• Structure in anodized aluminium and epoxy-coated steel; ABS panels (sides and base) available in 8 colours; wrap-around ABS bumper (grey).
• Worktop in ABS/PMMA (beige) with raised edges — worktop dimensions: 705 × 415 mm.
• Ergonomic push handle and two standardized side rails (one per side), height-adjustable.

Wheels and maneuverability

• Swivel castors Ø 125 mm (2 with brake); polyamide fork; grey non-marking rubber tread; stainless steel ball bearings.
• Equipped with wire guards to prevent entanglement.

Technical specifications

• Reference: 1006.01T06
• Model / series: Eolis®
• Overall dimensions (L × D × H): 830 × 510 × 1015 mm
• Empty weight: 27.5 kg
• Capacity: 10 modules
• Worktop: ABS/PMMA, 705 × 415 mm
• Wheels: Ø 125 mm, 2 with brake, polyamide fork, non-marking rubber tread, stainless bearings
• Available panel colours: plum, green (8 colours total)
• Materials: anodized aluminium + epoxy steel frame; ABS panels; ISO 600x400 modular elements
