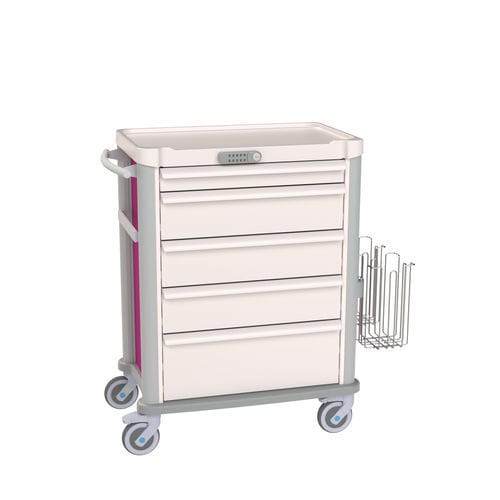

Medical trolley Eolis®

hospitaltransportstorage

Presentation
► In stock - Factory lead time J+15

Standard equipment

• central locking with coded lock + key
• 5 contiguous drawers with handle (1 x 1-module, 3 x 2-modules, 1 x 3-modules)
• double 20 L stainless steel waste bag holders

Technical description
• Modular design with internal ABS uprights (slides) compatible with ISO 600 x 400 accessories (drawers, bins, trays).
• Open-front trolley, closed on five sides; closure by contiguous drawers or removable ABS roll-up shutter (top-down). Central locking pre-configured in this version.
• Structure combining anodized aluminium and epoxy-coated steel; ABS panels (sides and back) available in 8 colours; wraparound ABS bumper (grey).
• Worktop in ABS/PMMA (beige) with lateral edges — worktop dimensions: 705 x 415 mm.
• Ergonomic push handle and two standardized rails (one per side), height-adjustable.
• Swivel wheels Ø 125 mm, 2 with brake; polyamide fork; non-marking grey rubber tread; stainless steel ball bearings; equipped with cable guards.

Composition (pre-configured Ref. 1006.01T03)

• central locking with coded lock + key
• 5 contiguous drawers with handle (1 x 1-module, 3 x 2-modules, 1 x 3-modules)
• double 20 L stainless steel waste bag holders

Specifications

• Product reference: 1006.01T03
• Commercial name: Eolis®
• Compatible module format: ISO 600 x 400
• Overall dimensions (W x D x H): 830 x 510 x 1015 mm
• Empty weight: 27.5 kg
• Capacity: 10 modules
• Worktop dimensions: 705 x 415 mm
• Materials: anodized aluminium + epoxy-coated steel; ABS panels (sides and back); ABS/PMMA worktop
• Closure: contiguous drawers or removable ABS roll-up shutter
• Standard equipment: ergonomic push handle, 2 standardized rails (adjustable), 5 drawers (1x1, 3x2, 1x3), central locking (coded lock + key), double 20 L stainless waste bag holders
• Wheels: Ø 125 mm, 2 braked, polyamide forks, non-marking rubber tread, stainless bearings
• Available panel colours: plum, green (8 ABS panel colours in total)
• Stock: In stock (factory lead time J+15)
