Product overview

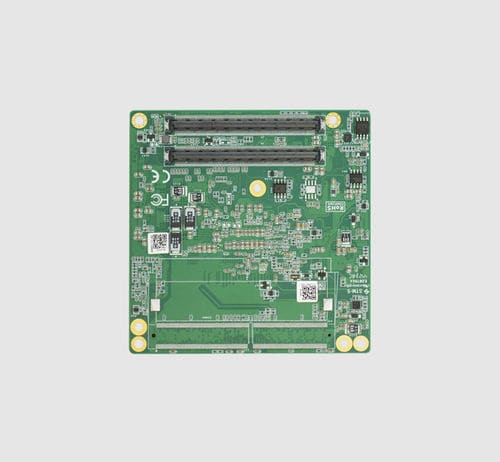

ECM-SKY6U2 is a COM Express Type 6 Compact module (95×95mm) based on Intel 6th Gen Skylake-U low-power processors. With a 15W TDP and DDR4 memory support, it targets industrial embedded systems requiring a balanced combination of compute and graphics performance in a compact footprint.

Key features

• Intel 6th Gen Skylake-U CPU options: i7-6600U / i5-6300U / i3-6100U (2 cores / 4 threads, 15W TDP)
• COM Express Type 6 Compact form factor, 95×95 mm
• Dual-channel DDR4 2133MHz, up to 16GB (2×SO-DIMM)
• 1×PCIe x4 (optional 1×PCIe x2 + 2×PCIe x1)
• Display: DDI (HDMI/DVI/DP), VGA, eDP/LVDS — DP/eDP up to 4096×2304@60Hz, HDMI up to 4096×2304@24Hz
• Integrated I/O: Intel i219 Gigabit LAN, 4×USB3.0, 4×USB2.0, 3×SATA3.0 (CPU-dependent), 1×COM, HDA audio, 8-bit GPIO, TPM2.0
• Operating range: 0~60°C (operating), -40~85°C (storage); ATX/AT power input

Product description
ECM-SKY6U2 integrates Intel Skylake-U processors to deliver efficient dual-core performance with Intel HD Graphics 520, suitable for graphics-assisted HMI and control tasks in power-sensitive environments. The compact COM Express Type 6 Compact layout (95×95mm) enables deployment in space-constrained industrial panels, portable testers and embedded control units.

Memory is supported via two SO-DIMM slots in dual-channel DDR4 2133MHz configuration, supporting up to 16GB for lightweight multitasking. Expansion is provided through a PCIe x4 lane (configurable to x2 + x1 + x1), enabling connection of small expansion cards such as wireless modules, I/O adapters or DAQ cards.

Onboard connectivity covers a Gigabit Ethernet controller (Intel i219), multiple USB ports, SATA interfaces (up to 3×SATA3.0 depending on CPU), serial port and standard industrial buses (LPC, SMBus). Security and manageability include TPM 2.0 and watchdog support. The board supports Windows 10 1809 and Yocto 2.4 Rocko.

Applications

• Industrial panel PCs and HMIs
• Portable inspection and test equipment
• Embedded control terminals and gateway devices
• In-vehicle infotainment and kiosk systems
• Medical monitoring and smart retail devices (where power and size constraints apply)

Specifications

• Model: ECM-SKY6U2
• Form factor: COM Express Type 6 Compact (95×95 mm)
• CPU: Intel Skylake-U i7-6600U / i5-6300U / i3-6100U (2C/4T, up to 3.4GHz for i7-6600U), 15W TDP
• Chipset: SoC
• Memory: DDR4 2133MHz, 2×SO-DIMM, up to 16GB
• PCIe: 1×PCIe x4 (optional 1×PCIe x2 + 2×PCIe x1)
• Display outputs: DDI (HDMI/DVI/DP), VGA, eDP/LVDS; DP/eDP up to 4096×2304@60Hz, HDMI up to 4096×2304@24Hz
• I/O: 4×USB3.0, 4×USB2.0, 1×COM, 1×HDA audio, 8-bit GPIO, LPC, SMBus
• Networking: 1×Gigabit LAN (Intel i219)
• Storage: up to 3×SATA3.0 (depending on CPU)
• Security: TPM 2.0
• Power input: ATX/AT; max power 54W
• Operating temperature: 0~60°C; Storage: -40~85°C
• OS support: Windows 10 1809, Yocto 2.4 Rocko
