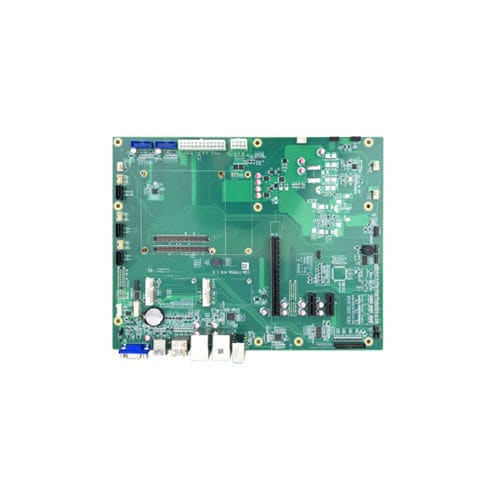

Telemonitoring module ECM-TYPE6A

USB

Product overview
ECM-TYPE6A is an industrial COM-Express Type 6 carrier board designed for high-performance embedded applications. It supports COM-Express Type 6 Basic and Compact modules and provides comprehensive I/O, storage and expansion for industrial, medical, digital signage and surveillance systems.

Key features

• Compatible with COM-Express® Type 6 modules (COM-E 220-pin)
• Supports 3×SATA 3.0 and 1×mSATA for storage
• Four independent display outputs: 2×DDI (configurable HDMI/DP), 1×DDI (configurable VGA), 1×LVDS (selectable eDP)
• Expansion slots: 1×PCIe x16, 1×PCIe x4, 2×PCIe x1, 1×Mini PCIe
• USB: 4×USB 3.0 (2 front, 2 header) and 4×USB 2.0 (front)
• Serial and I/O: 4×DB9 (SIO), 2×RS232 header, 1×8-bit GPIO, 1×LPT, LPC
• Network: 2×RJ45 Gigabit Ethernet
• Selectable power modes: ATX or AT

Technical specifications

• Model: ECM-TYPE6A
• Dimensions: 304.8×243.84×4.2 mm
• Display capability: up to 4 independent outputs (HDMI, DP, VGA, LVDS/eDP)
• Storage interfaces: 3×SATA 3.0, 1×mSATA
• PCIe: 1×x16, 1×x4, 2×x1
• Serial ports: total 6 COM (4×DB9 + 2×RS232 header)
• USB: 2×USB3.0 front, 2×USB3.0 header, 4×USB2.0 front
• Ethernet: 2×RJ45 10/100/1000 Mbps
• Audio: 1×3.5 mm jack
• Power connectors: ATX (VCC, VSB) / AT (VCC)
• Operating temperature: -20 to 70 °C; Storage temperature: -40 to 85 °C; Operating humidity: 10–90% non-condensing
• PCB color: Green
• Supported OS: Windows, Linux
