Product introduction

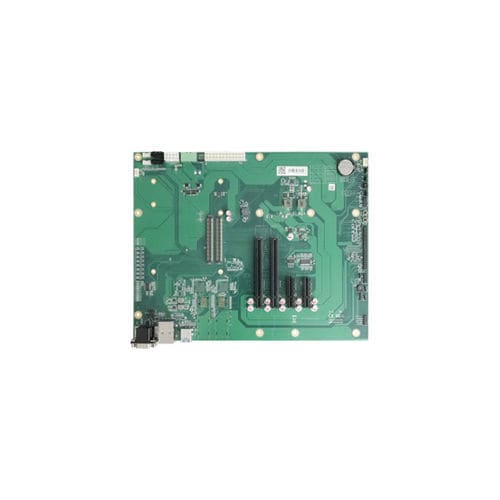

ECD-TYPE7A is a COMe Express Type 7 carrier board for Type 7 core modules. It follows ATX dimensions (304.8×243.8mm) and provides expansion and I/O suited for network communication and server-class applications.

Product features

• COMe Express Type 7 carrier board, designed for Type 7 core modules
• ATX motherboard size: 304.8×243.8mm for ample expansion area
• PCIe expansion: 1×PCIe x16 + 1×PCIe x8 + 2×PCIe x4 to support multi-card deployments (high-speed NICs, NVMe HBA, FPGA accelerators)
• Storage and I/O: 2×SATA3.0, front panel 4×USB3.0, 1×RJ45 network port
• Dual serial ports: 2×DB9 (RS232) for industrial communication
• Debug and development interfaces: CPLD, CGBC, LPC, 2×I2C, GPIO, FPANEL
• Front-panel signals: PWR, HDD LED, RST, FPANEL; supports Sleep and LID buttons
• Dual power input: ATX (VCC) and DC 12–19V
• Operating temperature: 0–60°C; Storage temperature: -40–85°C
• Compatible with Windows and Linux

Specifications

• Model: ECD-TYPE7A (COMe Express Type 7 carrier board)
• Size: 304.8×243.8mm (ATX)
• Compatible module: Type 7 core module
• PCIe slots: 1×x16, 1×x8, 2×x4
• SATA: 2×SATA3.0
• USB: Front panel 4×USB3.0
• Network: 1×RJ45
• Serial ports: 2×DB9 (RS232)
• Debug interfaces: CPLD, CGBC, LPC, 2×I2C, GPIO, FPANEL
• Front-panel signals: PWR, HDD LED, RST, FPANEL
• Buttons: Sleep, LID
• Power input: ATX (VCC) / DC 12–19V
• Operating temperature: 0–60°C
• Storage temperature: -40–85°C
• Operating systems: Windows, Linux
