Telemonitoring module ECM-A121

USB

Product Overview

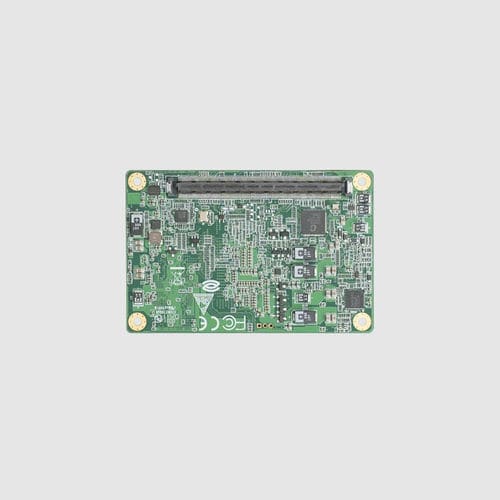

ECM-A121 is a COM-Express Type 10 Mini core module (84×55mm) based on Intel N97 / i3-N305 platforms with on-board LPDDR5 memory and optional eMMC. Available CPU options include N97 (4 cores, up to 3.6GHz, 12W), i3-N305 (8 cores, up to 3.8GHz, 15W), X7211E (2 cores, 3.2GHz, 6W) and X7213E (2 cores, 3.2GHz, 10W). The compact 84×55mm Type 10 Mini form factor and integrated interfaces make the module suitable for space-constrained industrial edge computing and IoT terminals.

Product Features

• Supports Intel N97 / i3-N305 / X7211E / X7213E processors; TDP range 6–15W
• COM-Express Type 10 Mini form factor, ultra-compact 84×55mm board
• On-board LPDDR5 4800MHz memory, up to 16GB (no socket)
• Integrated Intel i226 2.5GbE controller and selectable eMMC 64GB/128GB
• Flexible PCIe configuration: 4×PCIe x1 (default) or 2×PCIe x2 (optional)
• Display support: 1×LVDS single (or eDP) + 1×DDI (HDMI/DP); HDMI2.0b up to 4K@60Hz
• Wide input voltage 4.75V–20V; operating temperature 0–60°C for industrial edge and IoT use

Specification
ECM-A121
Product type: COM-Express Type 10 Mini core module
Size: 84×55mm
CPU (options): Intel N97 (4 cores, 3.6GHz, 12W) / i3-N305 (8 cores, 3.8GHz, 15W) / X7211E (2 cores, 3.2GHz, 6W) / X7213E (2 cores, 3.2GHz, 10W)
Chipset: SoC
Memory: On-board LPDDR5 4800MHz
Max memory: up to 16GB (soldered, no socket)
Integrated graphics: Intel UHD Graphics
PCIe expansion: configurable 4×PCIe x1 or 2×PCIe x2
Display outputs: 1×LVDS (or eDP) + 1×DDI (HDMI/DP); HDMI2.0b up to 4096×2160@60Hz
USB: 2×USB3.2, 8×USB2.0
Serial: 2×COM
Network: 1×2.5GbE (Intel i226)
SATA: 2×SATA3.0 (optional)
Storage: eMMC 64GB / 128GB (optional)
Audio: 1×HDA
GPIO: 4×GPO / 4×GPI
Watchdog: supported
Power input: wide 4.75V–20V
Operating temperature: 0–60°C
Storage temperature: -40–85°C
OS support: Windows / Linux
