Data transfer module ECM-C134

driverdata processingtelemonitoring

Product overview

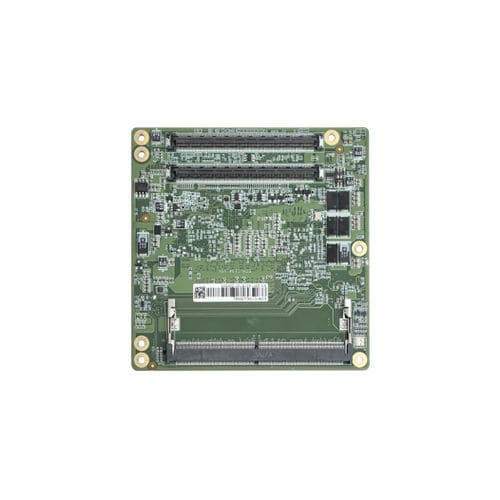

ECM-C134 is a COM Express Type 6 compact module based on the Intel Core U300E low-power platform. It integrates a 5-core/6-thread processor (up to 4.3 GHz, 15W TDP) in a 95×95 mm COM-Express Type 6 Compact form factor and supports DDR5 memory up to 4800MHz and 64GB, providing a compact computing core for industrial HMI, smart retail terminals and IoT edge devices.

Technical details
CPU: Intel Core U300E (5C/6T, up to 4.3GHz, 8MB cache, 15W). Form factor: COM-Express Type 6 Compact (95×95 mm). Memory: DDR5 Non-ECC 4800MHz, up to 64GB, 1×SO-DIMM (option 2×SO-DIMM). PCIe: 2×PCIe Gen4 x4, 1×PCIe Gen4 x2, 2×PCIe Gen4 x1. Networking: Intel i226-V controller, up to 2.5GbE. Display: 3 independent outputs (2×HDMI 1.4, LVDS dual-channel; eDP optional). USB: 4×USB3.0, 8×USB2.0. Internal interfaces: 2×SATA3.0, HDA audio, 2×COM, 8-bit GPIO, watchdog, LPC, SMBUS. Power: Vin 8.5–20V (±5%); ATX/AT support. Dimensions: 95×95 mm. Environment: Operating 0–60°C; Storage -40–85°C. OS support: Windows 10, Linux.

Key features

• Intel Core U300E processor, 5 cores/6 threads, 15W low-power TDP
• COM-Express Type 6 Compact 95×95 mm for space-constrained systems
• DDR5 4800MHz support up to 64GB for improved memory bandwidth
• PCIe Gen4 multi-channel expansion and Intel i226-V 2.5GbE networking
• Triple-display capability and extensive industrial I/O for HMI and embedded applications

Specifications

• Model: ECM-C134
• Processor: Intel Core U300E (5C/6T, up to 4.3GHz, 8MB cache, 15W)
• Format: COM-Express Type 6 Compact (95×95 mm)
• Memory: DDR5 Non-ECC up to 64GB (4800MHz); 1×SO-DIMM (option 2×SO-DIMM)
• PCIe: 2×PCIe Gen4 x4; 1×PCIe Gen4 x2; 2×PCIe Gen4 x1
• Ethernet: Intel i226-V, 10/100/1000/2.5Gbps
• Display: 2×HDMI 1.4; LVDS dual-channel (eDP optional); HDMI max 1920×1080@60Hz; LVDS 1920×1200@60Hz
• USB: 4×USB3.0 (5Gbps); 8×USB2.0 (480Mbps)
• Internal interfaces: 2×SATA3.0 (6Gbps), HDA audio, 2×COM, 8-bit GPIO, watchdog, LPC, SMBUS
• Power: Vin 8.5–20V (±5%); ATX: 12V, 5VSB
• Dimensions: 95×95 mm; PCB color: Green
• Operating temperature: 0–60°C; Storage temperature: -40–85°C
• OS support: Windows 10, Linux
