Data transfer module ECM-6202

driverdata processingtelemonitoring

Product Introduction

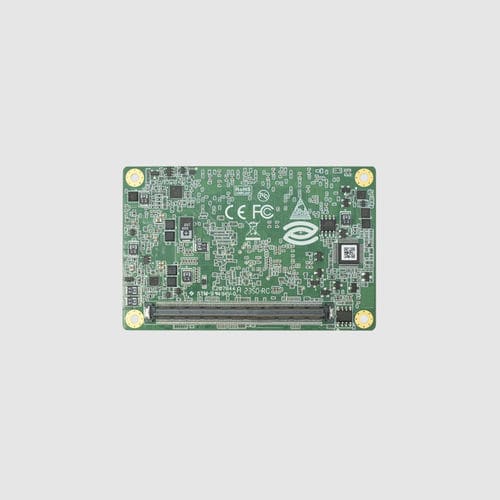

ECM-6202 is a COM Express Type 10 Mini module based on Intel Elkhart Lake low-power processors, available with X6211E (2 cores, 3.0GHz, 6W), J6426 (4 cores, 2.0GHz, 10W) or J6412 (4 cores, 2.6GHz, 10W). The COM Express Type 10 Mini form factor (84×55mm) is designed for easy integration into space-constrained embedded systems.

Product Overview
The ECM-6202 combines onboard LPDDR4x memory and eMMC storage on an 84×55mm COM Express Type 10 Mini board to deliver energy-efficient computing at a 6–10W TDP. It targets IoT edge gateways and light industrial control applications that require a compact, low-power platform.

Product Features

• Intel Elkhart Lake processors: X6211E / J6426 / J6412 (6–10W TDP)
• COM Express Type 10 Mini form factor, 84×55mm
• Onboard LPDDR4x 3200MT/s memory, up to 16GB
• Onboard eMMC 64GB plus 2× SATA3.0 and 1× PCIe x4 (can be split to 4× x1)
• Intel i225‑V 2.5GbE networking; 2× USB3.0; 8× USB2.0
• Display: 1× single-channel LVDS (optional eDP) + 1× DDI (DP++), DP1.4a up to 4096×2304@60Hz
• Operating temperature -10 to 50°C; wide input 9–21V (ATX/AT)

Detailed Description
The module features onboard LPDDR4x 3200MT/s memory up to 16GB and integrated eMMC 64GB for operation without external storage. Expansion options include 2× SATA3.0 (6Gbps) and 1× PCIe x4 (configurable as 4× x1). Networking is provided by Intel i225‑V supporting 2.5GbE. Video outputs include 1× single-channel LVDS (eDP optional) and 1× DDI (DP++), supporting DP1.4a up to 4096×2304@60Hz.

Interfaces include 2× USB3.0, 8× USB2.0, 8-bit GPIO, 2× UART, 1× HDA, 1× LPC and 1× SMBUS. The board supports ATX/AT dual power modes with wide input 9–21V, operating temperature -10 to 50°C and storage -40 to 80°C. Software support includes Windows 10 and Linux. Typical applications: IoT edge gateways, light industrial control, smart retail terminals, environmental monitoring and portable medical devices.

Technical specifications

• Product type: COM Express Type 10 Mini module
• Dimensions: 84×55mm
• Processor: Intel Elkhart Lake X6211E (2 cores 3.0GHz, 6W) / J6426 (4 cores 2.0GHz, 10W) / J6412 (4 cores 2.6GHz, 10W)
• Chipset: SoC
• Memory: Onboard LPDDR4x 3200MT/s
• Max memory: 16GB
• Memory type: Onboard LPDDR4x (soldered)
• Integrated graphics: Intel UHD Graphics
• PCIe: 1× PCIe x4 (can be split to 4× x1)
• Display output: 1× single-channel LVDS (optional eDP) + 1× DDI (DP++); DP1.4a up to 4096×2304@60Hz
• USB: 2× USB3.0; 8× USB2.0
• Serial: 2× UART
• Network: 1× 2.5GbE (Intel i225‑V)
• SATA: 2× SATA3.0 (6Gbps)
• Storage: Onboard eMMC 64GB
• Audio: 1× HDA
• GPIO: 8‑bit GPIO
• Power input: Wide 9–21V (ATX/AT)
• Operating temperature: -10–50°C
• Storage temperature: -40–80°C
• OS: Windows 10 / Linux
