Product Introduction

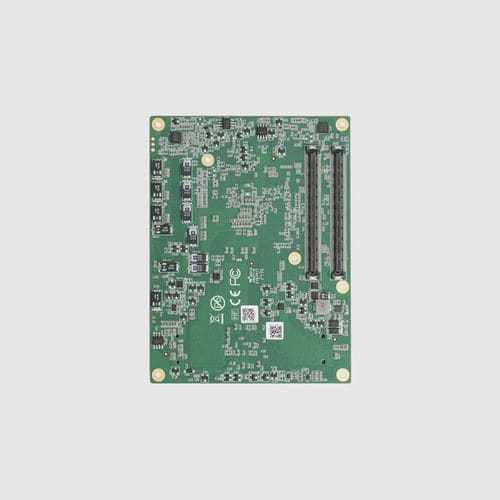

ECM-6401 is a COM-Express Type 7 CPU module based on the Intel Xeon D (Broadwell-DE) platform. In a 95×125mm form factor with DDR4 memory support and extensive PCIe lanes, it provides PCIe x16/x8 expansion and 10G-capable network interconnect for network appliances, storage servers and telecom edge devices.

Detailed Description
The ECM-6401 supports Intel Xeon D processors (Broadwell-DE), selectable as D-1548 (8 cores, 2.0GHz, 45W TDP) or D-1508 (2 cores, 2.2GHz, 25W TDP), delivering server-class reliability and long-term supply. The COM-Express Type 7 95×125mm specification emphasizes PCIe expansion and high-speed networking rather than display outputs. Memory is dual-channel DDR4 2400MHz SO-DIMM, up to 64GB. Expansion includes 1×PCIe x16, 1×PCIe x8 and 7×PCIe x1 (total 9 PCIe lanes) to accommodate 10GbE/25GbE NICs, NVMe storage HBAs, FPGA accelerators, crypto cards and other server-grade expansion for NFV, SDS and similar high-performance scenarios. Integrated networking options include Intel i225LM/IT (up to 2.5GbE) or Intel i210-AT, with support for 10G Base-KR side-band interconnect.

Product Features

• Intel Xeon D processor, Broadwell-DE server-class platform
• COM-Express Type 7, 95×125mm form factor
• DDR4 memory support up to 64GB and 10G networking capability
• PCIe expansion: PCIe x16 + PCIe x8 + 7×PCIe x1
• 2.5GbE / 10G connectivity options and dual SATA3.0
• Interfaces: 4×USB3.0, 4×USB2.0, 2×SATA3.0, 8-bit GPIO, LPC/SMBUS/SPI, watchdog, dual-fan headers
• Operating temperature 0~60°C, storage -20~85°C; supports Windows and Linux

Ordering Information (examples)
8.ZRT.80-1615-14-LEF (D-1548 + 2×SO-DIMM, carton qty 30)
8.ZRT.80-1615-15-LEF (D-1508 + 2×SO-DIMM, carton qty 30)
8.ZRT.80-1615-16-LEF (D-1559 + 2×SO-DIMM, carton qty 30)

Characteristics / Specifications

• Product type: COM-Express Type 7 CPU module
• Dimensions: 95×125mm
• Processors: Intel Xeon D-1548 (8 cores, 2.0GHz, 45W) / D-1508 (2 cores, 2.2GHz, 25W), Broadwell-DE
• Chipset: SoC
• Memory: DDR4 2400MHz
• Maximum memory: 64GB
• Memory slots: 2×SO-DIMM
• PCIe expansion: 1×PCIe x8 + 1×PCIe x16 + 7×PCIe x1
• Display output: None (Type 7 focused on networking and PCIe)
• Network: Intel i225LM/IT (up to 2.5GbE) or i210-AT; supports 10G Base-KR side-band interconnect
• SATA: 2×SATA3.0 (6Gbps)
• USB: 4×USB3.0; 4×USB2.0
• Audio: None
• GPIO: 8-bit GPIO
• Watchdog: Supported
• Power input: 8.5V~20V
• Operating temperature: 0~60°C
• Storage temperature: -20~85°C
• Operating systems: Windows / Linux
