Product overview

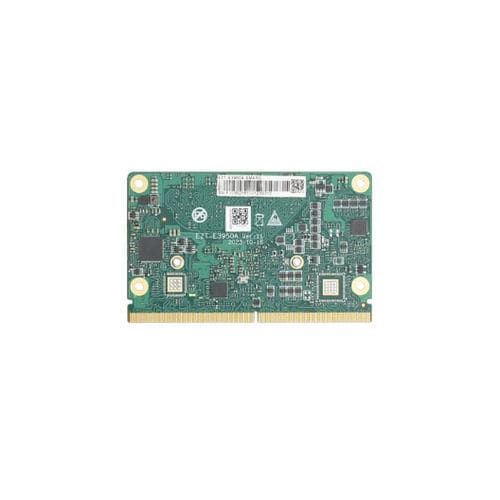

The EZT-E3950A(B) is a SMARC 2.11 core module based on the Intel Atom X7-E3950 processor. It integrates on-board LPDDR4 memory and a wide range of I/O (CSI/SDIO/UART/I2C, etc.), supports dual display and camera inputs, and is intended for IoT gateways, embedded vision and lightweight edge computing devices.

Key features

• Intel Atom X7-E3950, 4 cores /4 threads, 2.0 GHz base (up to 2.6 GHz), 10W TDP
• On-board LPDDR4 (1600/2133/2400 MHz), up to 8 GB
• 1× PCIe 2.0 x4 expansion; 1× SATA 3.0; 64 GB eMMC optional
• Dual display outputs (eDP→LVDS + DDI configurable to HDMI/DP); DP up to 4096×2160@60Hz
• 2× USB 3.0, 4× USB 2.0; Intel i211-AT Gigabit LAN (1×, optional 2×); 1× HDA audio
• 2× CSI camera interfaces; 1× SDIO; 4× UART; 5× I2C; 1× SPI; 1× SMBUS; 1× 8-bit GPIO
• SMARC 2.11 form factor, 82 × 50 × 1.2 mm; operating temperature 0°C to 60°C

Technical specifications
Model: EZT-E3950A(B)
Type: SMARC 2.11 core module
Processor: Intel Atom X7-E3950 (4 cores / 4 threads)
Base frequency: 2.0 GHz (up to 2.6 GHz)
Cache: 2 MB L3
TDP: 10 W
Memory: On-board LPDDR4 1600/2133/2400 MHz, max 8 GB
Storage: 64 GB eMMC (optional) + 1× SATA 3.0
Expansion: 1× PCIe 2.0 x4
Display: eDP→LVDS + DDI (configurable HDMI/DP); DP 4096×2160@60Hz, HDMI 3840×2160@30Hz, eDP 3840×2160@60Hz, LVDS 1368×768@60Hz
USB: 2× USB 3.0, 4× USB 2.0
Network: Intel® Ethernet Controller i211-AT (1× LAN, optional 2× LAN)
Audio: 1× HDA
GPIO/Serial/Bus: 1× 8-bit GPIO, 4× UART, 5× I2C, 1× SPI, 1× SMBUS
Camera/IO: 2× CSI, 1× SDIO
Power: DC 5V ±5%
Buttons: 1× Power Button; 1× Reset Header Pin
Operating temperature: 0°C to 60°C
Storage temperature: -40°C to 85°C
Humidity: 5%–85% (0–45°C non-condensing)
Dimensions: 82 × 50 × 1.2 mm
PCB color: Green
OS support: Windows 10 (1809/1607), Linux, Yocto YP2.5(4.14)/YP2.7(4.19)

Applications

• Industrial gateways and protocol converters
• Embedded vision systems and smart cameras
• Digital signage and interactive terminals
• Lightweight edge computing and IoT appliances

Compatibility & software
Supports Windows 10 and mainstream Linux distributions; Yocto BSP available. Drivers for Intel Ethernet and common display interfaces are provided for integration and development.
