Hospital door RD400

Overview

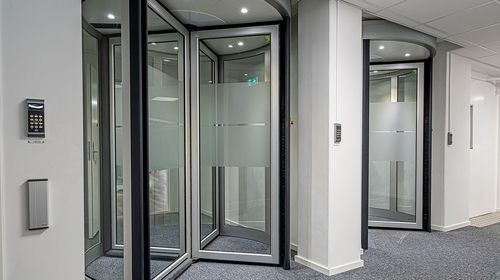

Closely manage access with the ASSA ABLOY RD400 series (RD3A / RD4A) access-control revolving doors. Designed for restricted-entry environments, these revolving doors separate indoor and outdoor zones to improve climate control and reduce air exchange, while providing controlled one- or two-direction passage. Emergency break-away wings enable rapid egress when required. Units are available in multiple sizes and are intended for direct installation on finished floors without special foundations.

Key benefits

• Controlled access for one- or two-direction entry
• Emergency break-away wings for safe, rapid evacuation
• Energy-saving principle with minimal air exchange (“always open, always closed”)
• Improved indoor climate control and reduced heating/cooling costs
• No special foundations required — designed for finished-floor installation
• Multiple sizes and configurations to meet passage requirements

Standards and compliance
ASSA ABLOY RD3A1, RD4A1 and RD4A2 comply with EN 16005 safety standard.

Materials, finishes and flexibility
Available finishes and claddings: powder-coated (RAL colours), anodized (clear or bronze) and stainless-steel cladding. The system can be specified for different fascia heights and internal heights to suit site and aesthetic requirements.

Installation & operation notes
Designed for direct finished-floor installation; suitable for hospitality, retail and restricted-access buildings. Robust mechanical design and emergency break-away wings provide safe egress. The door effectively separates interior and exterior environments to reduce noise and protect occupant comfort.

Technical specifications

• Product ID: RD3A / RD4A
• Power supply: 230 V, 50 Hz, mains fuse max 10 A; 100–120 V, 50/60 Hz, mains fuse max 16 A
• Power consumption: 200 W (operating) / 30 W (standby)
• Lighting (LED): 5 W – 30 W
• Internal height (non-standard): 82 ¾” – 102 3/8”
• Fascia height (non-standard): 47 ¼” – 9 ¾”
• Finish options: powder-coated (RAL colours), anodized (clear or bronze)
• Cladding: stainless-steel cladding available
