Hospital room door drive SW200 OHC

electromechanical

Description

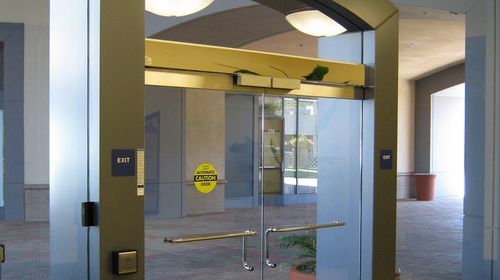

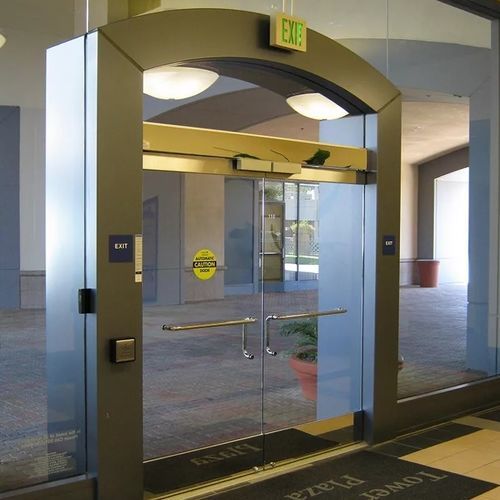

The ASSA ABLOY SW200 OHC is a concealed, overhead electromechanical swing door operator with a concealed arm system, designed to combine an unobtrusive finish with high mechanical strength. It delivers smooth, gentle operation suitable for high traffic flows while compensating for stack pressure and wind load. Manual opening remains easy and a user-friendly manual push force is provided in power-off.

Applications
Suitable for low-energy and heavy-duty entrances, interior and exterior single- and double-leaf doors, escape routes with panic break-out and manual reset. Ideal where an unobtrusive aesthetic and reliable high-performance operation are required.

Key features

• Concealed overhead electromechanical operator with concealed arm system
• Aesthetic finish combined with high structural strength
• Designed for gentle, smooth operation and high traffic flow
• Compensates for stack pressure and wind load
• Easy manual operation and low manual push force in power-off
• Optional monitored embedded battery back-up for operation during power interruption

Downloads / BIM / Objects (summarised)
Technical data sheet, BIM objects, product drawings and specifications are available for download to support planning and integration.

Technical specifications

• Product ID: SW200 OHC
• Variations: Single door, Double door
• Power supply: 100–240 VAC ±10/–15%, 50/60 Hz
• Mains fuse (building installation): max. 10 A
• Power consumption (max): 300 W
• Auxiliary voltage: 24 V DC, max. 700 mA
• Electromechanical locking connection: 12 V DC, max. 1200 mA OR 24 V DC, max. 600 mA
• Monitored battery back‑up unit: 24 V DC (option)
• Ambient temperature: -20 °C to +45 °C
• Relative humidity (non‑condensing): up to 95%
• Class of protection: IP20
• Suitable door types: single-leaf and double-leaf, interior and exterior, low-energy to heavy-duty, escape routes with panic break-out and manual reset
