Overview

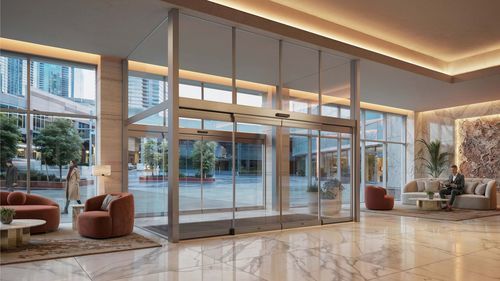

The ASSA ABLOY SL500 CGL is an automatic sliding all-glass commercial entry door system that combines uninterrupted sightlines with the SL500 series operator performance. It is configurable for single-slide or bi-part installations and can be personalized with painted or clad finishes and etched or printed glass logos.

Design and performance
The SL500 CGL uses the SL500 operator to deliver long-term, consistent sliding performance. Key design and performance features include:

• Available as single-slide or bi-part doors for interior and exterior applications.
• Configurations include Fixed Sidelite (FSL) and Full Breakout (FBO) options for emergency egress.
• 4 in (≈102 mm) anti-riser derailment guides to maintain alignment and stability.
• Tandem carriage wheels engineered for smooth, reliable movement under medium-to-heavy pedestrian loads.
• Sleek tapered header designed to sit flush with interior and exterior surfaces for integrated appearance.
• Wide range of widths and sizes to suit custom openings and project specifications.
• Several components are adjustable without removing the door, and a removable service cover improves access for maintenance.

Energy, safety and serviceability
The SL500 CGL is engineered to meet energy, safety and maintenance needs typical of commercial projects:

• Low-energy operator option available to reduce operating power consumption.
• Independent time delays for sensors and key access to fine-tune door behavior and security.
• Magnetic catches standard on Full Breakout (FBO); optional on Fixed Sidelite (FSL).
• Fail-safe sensor monitoring to support safe operation in all modes.
• Design facilitates routine service access and component adjustment to minimize downtime.

Applications and industries
Designed for commercial entryways in hospitality, retail, healthcare, airports and other environments with medium-to-heavy pedestrian traffic where aesthetic transparency and high-performance automatic operation are required. Supports emergency breakout for compliance with life-safety codes.

Additional product notes and items

• Shallow, flush-mounted header provides an integrated visual finish with jamb or curtain wall interfaces.
• Tandem carriage wheels are standard to enhance stability and tracking.
• Optional inconspicuous bottom-rail lock available without altering glass aesthetics.
• Tinted or etched glass options and corporate logo etching are available for visual customization.
• Meets ANSI/BHMA A156.10 for power-operated pedestrian doors.
• UL 325 listed.
• Suitable for medium-to-heavy pedestrian traffic.
• Emergency breakout available to conform with life-safety requirements.
• Painted or clad finishes available for project-specific appearance.

Technical specifications

• Brand: ASSA ABLOY
• Model designation: SL500 CGL
• Type: Automatic sliding all-glass commercial entry door
• Operator: SL500 series operator
• Configurations: Single slide or bi-part; Fixed Sidelite (FSL) and Full Breakout (FBO)
• Anti-derailment: 4 in (≈102 mm) anti-riser derailment guides
• Carriage: Tandem carriage wheels
• Header: Tapered flush-mounted header for interior and exterior
• Safety: Fail-safe sensor monitoring; emergency breakout for life-safety compliance
• Standards: Meets ANSI/BHMA A156.10; UL 325 listed
• Energy: Low-energy operator available; independent time delays for sensors and key access
• Accessories/options: Magnetic catches (standard on FBO, optional on FSL); tinted or etched glass; painted or clad finishes; bottom-rail lock options
• Serviceability: Adjustable components without door removal; removable service cover for maintenance access
• Typical use: Hospitality, retail, healthcare, airport and other commercial entrances with medium-to-heavy pedestrian traffic
