Hospital room door drive SW200i

electromechanical

Overview

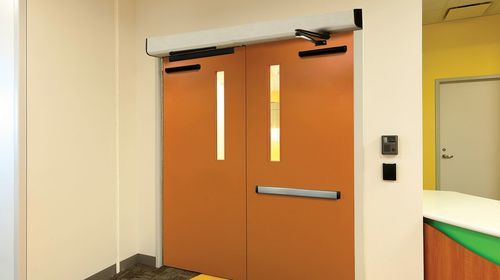

The ASSA ABLOY SW200i is a surface-mounted swing door operator providing electro-mechanical actuation for heavy and standard swing doors. Its configurable settings allow operation in both low-energy and full-energy modes to suit institutional, commercial and retrofit installations.

Applications

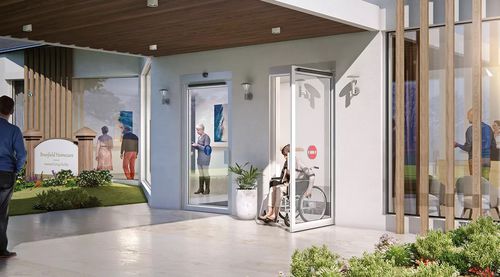

• Exterior and interior entryways
• Corridors and interior openings
• Healthcare environments and other institutional settings
• Retrofit projects and new construction for swing door installations

Key features and benefits

• Heavy-duty electro-mechanical, non-handed operator designed for continuous use
• Adjustable parameters to accommodate varying installation conditions and door weights
• Rated to operate doors up to 700 lb (approx. 315 kg) per operator
• Configurable manual push force (documented adjustable range e.g. ~5 lbf to 15 lbf) to meet low-energy requirements
• Low-profile, field-adaptable surface-mounted design for straightforward retrofit or new-build mounting
• Available accessories and configurations to address stack pressure, manual push settings and other application-specific needs
• Designed to comply with referenced industry standards (ANSI A156.10, ANSI A156.19 where applicable)

Installation & compatibility notes

• Surface-mounted installation suitable where a mounted operator is required or preferred
• Can be fitted to a wide range of swing door types, including paired doors
• BIM assets, technical drawings and product data available to support specification and installation

Technical specifications

• Product ID: SW200i
• Model designation: SW200i
• Brand: ASSA ABLOY
• Operator type: Heavy-duty electro-mechanical, non-handed
• Door weight capacity: Up to 700 lb (approx. 315 kg) per operator
• Manual push force: Adjustable (documented range approx. 5 lbf to 15 lbf)
• Energy modes: Configurable for low-energy and full-energy operation (referenced: ANSI A156.10, ANSI A156.19)
• Typical applications: Exterior/interior entryways, corridors, healthcare and institutional installations
• Installation: Surface-mounted; suitable for retrofit or new construction
