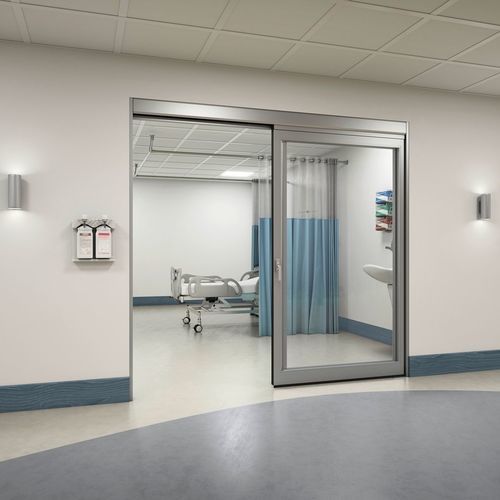

Protection door VersaMax 2.0 FGI
hospitalintensive caresliding

Protection door - VersaMax 2.0 FGI - ASSA ABLOY Entrance Systems Italy Srl - hospital / intensive care / sliding
Protection door - VersaMax 2.0 FGI - ASSA ABLOY Entrance Systems Italy Srl - hospital / intensive care / sliding
Protection door - VersaMax 2.0 FGI - ASSA ABLOY Entrance Systems Italy Srl - hospital / intensive care / sliding - image - 2
Protection door - VersaMax 2.0 FGI - ASSA ABLOY Entrance Systems Italy Srl - hospital / intensive care / sliding - image - 3
Add to favorites
Compare this product

Characteristics

Function
protection
Application domain
hospital, intensive care
Opening type
sliding
Other characteristic
zero threshold, double-leaf, antibacterial

Description

Overview
Designed for critical-care environments, the ASSA ABLOY VersaMax 2.0 FGI is a sliding ICU/CCU door engineered to provide a full 44.5″ clear door opening (CDO) within an 8' overall frame. The system meets 2022 Facility Guidelines Institute (FGI) requirements adopted by multiple jurisdictions, supporting patient access and operational workflow through a revised VersaMax platform and updated components.

Product highlights
  • Sliding ICU/CCU door: ASSA ABLOY VersaMax 2.0 FGI
  • Product ID: VersaMax 2.0 FGI ICU/CCU sliding door
  • Full 44.5″ clear door opening (CDO) on an 8' overall frame width (OFW)
  • Designed for compliance with 2022 Facility Guidelines Institute (FGI) requirements

Key features
  • 44.5″ clear door opening on an 8' frame (≈ 1130 mm on ≈ 2438 mm frame)
  • Flush bolt‑free breakout design for rapid emergency egress
  • Trackless option for reduced floor obstruction
  • Overhead concealed variations for integration with ceiling systems
  • Smoke‑rated packages certified to UL1784 available
  • Anti‑static option for electrical grounding
  • Available in 2‑panel configurations
  • Optional MicroShield™ antimicrobial surface treatment

Available variations / options
  • Overhead concealed assemblies
  • Trackless configurations
  • Flush Bolt‑Free (breakout) design
  • Smoke‑rated packages (UL1784 certified)
  • Anti‑static grounding option
  • MicroShield™ antimicrobial coating
  • 2‑panel configurations

Technical specifications
  • Clear door opening (CDO): 44.5″ on an 8' overall frame installation (≈ 1130 mm on ≈ 2438 mm)
  • Designed to meet 2022 Facility Guidelines Institute (FGI) requirements, including jurisdictions adopting CBC provisions
  • Smoke‑rated packages available (UL1784)
  • Configurations: overhead concealed, trackless, 2‑panel
  • Flush Bolt‑Free design to facilitate breakout operations
  • Anti‑static option for electrical grounding
  • Optional MicroShield™ antimicrobial coating
  • Multiple product drawings, technical datasheets and BIM assets available for specification and installation
