Protection door Resilience R128

hospitalslidingdouble

Description

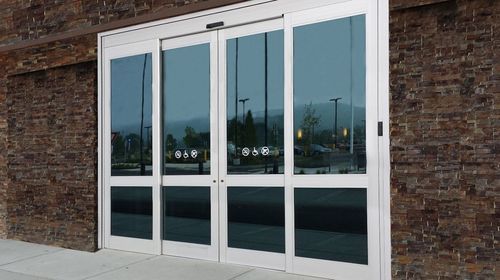

ASSA ABLOY SL500 Resilience R128 — hurricane‑resistant sliding door for over‑height openings.
The SL500 Resilience R128 is designed for applications requiring large clear openings and enhanced impact performance. It features medium stiles and 10 in (254 mm) bottom rails to support over‑height door packages and heavy‑duty operation. The system meets Category D large missile impact criteria and offers full impact packages up to 114 PSF (≈5.46 kPa).

Applications

• Home centers
• Garden centers
• Retail
• Hospitality

Key features

• Hurricane‑resistant sliding door design
• Medium stiles for structural support
• 10 in (254 mm) bottom rails
• Expansive size ranges: bi‑part up to 16 ft (4.88 m); single slide up to 9 ft (2.74 m)
• Maximum overall frame height: 128 in (3.25 m)
• Full impact package options up to 114 PSF (≈5.46 kPa)
• Complies with NFPA 101 life safety code
• Category D large missile impact rating
• Suitable for over‑height door packages and heavy‑duty, rugged conditions

Technical specifications

• Product type: Hurricane‑resistant sliding door
• Series: SL500
• Model: Resilience R128
• Door construction: medium stiles, 10 in (254 mm) bottom rails
• Maximum overall frame height: 128 in (3.25 m)
• Maximum design pressure (full impact packages): up to 114 PSF (≈5.46 kPa)
• Size ranges: bi‑part up to 16 ft (4.88 m); single slide up to 9 ft (2.74 m)
• Safety/compliance: NFPA 101 life safety code compliant
• Impact rating: Category D (large missile impact)
• Typical applications: home centers, garden centers, retail, hospitality
