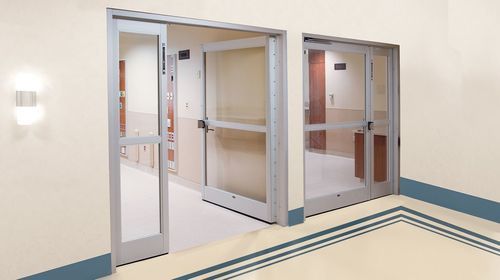

Intensive care door VersaMax 2.0

swingswingingwith glass panel

Overview
ASSA ABLOY VersaMax 2.0 Swing ICU door is a trackless swing door system designed for ICU/CCU environments. Available in single, equal pair and unequal pair configurations, it delivers wide clear openings, an easy-to-use breakout for patient transport and options to support infection control.

Key features

• Single, equal pair and unequal pair configurations
• Trackless swing design (no floor tracks) for unobstructed transport
• Smoke-rated package certified to UL 1784
• Factory-installed t-slotted seals and concealed door sweeps
• Integrated latching system with optional door closer for self-closing operation
• Optional internal glass blind system and MicroShield™ antimicrobial coating

Additional details
Simple breakout allows rapid manual or assisted opening for egress and patient transfer without floor-mounted tracks. The UL 1784 smoke-rated package includes factory-fitted t-slotted seals, concealed sweeps and an integrated latching system to maintain environmental separation. An optional door closer provides self-closing operation. Internal glass blinds and the MicroShield™ coating are available to support clinical infection-control protocols.

Technical specifications

• Configurations: single door, equal pair, unequal pair
• Trackless swing design (no floor track)
• Smoke-rated package: certified to UL 1784
• Factory-installed t-slotted seals
• Concealed door sweeps
• Integrated latching system
• Optional door closer for self-closing operation
• Optional internal glass blind system
• Optional MicroShield™ antimicrobial coating
• Easy-to-use breakout for egress and patient transport
